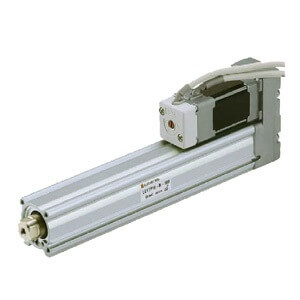

SMC LEY32DC-400B LEY Series Electric Actuator/Rod Type Step Motor(Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,185.00
SMC LEY32DC-400B - LEY Series Electric Actuator, 32mm, 400mm Stroke, Step Motor
The SMC LEY32DC-400B is an electric actuator with 32mm frame and 400mm stroke. Step motor drive for precise, programmable linear motion.
Key Features & Specifications
- Step motor drive - precise positioning with programmable speed and acceleration
- Ball screw mechanism - repeatable linear motion with minimal backlash
- Programmable motion profiles - configurable position, speed, and force
- High rigidity frame - supports demanding load conditions
- Controller compatible - SMC LECP/JXC series controllers
- Multiple rod options - standard, guided, and clean-room variants
- Size: 32mm | Stroke: 400mm | Step Motor
Typical Applications
Designed for precision positioning, automated assembly, pick-and-place, and industrial automation requiring programmable electric motion control.
Manufactured by SMC Corporation.
- Size:
- 32
- Motor Mounting Position:
- Straight Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 2.5 mm, Size25: 3 mm, Size32: 4 mm
- Stroke:
- Stroke 400 mm
- Motor Option:
- With Lock
- Rod End Thread:
- Rod End Female Thread
- Mounting Style:
- Both Ends Tapped Style/Body Bottom Tapped Style
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
- Made To Order:
- Standard
