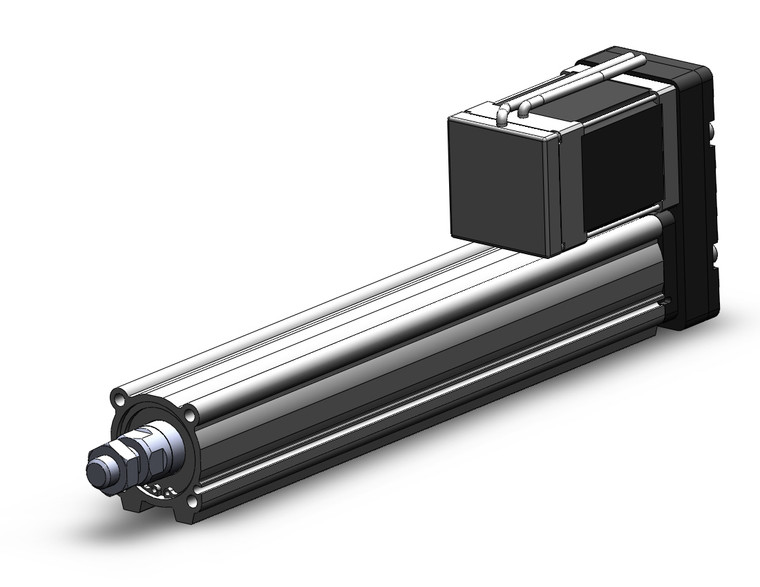

SMC LEY40A-200M-S5C918 LEY Series Electric Actuator/ Rod Type Step Motor(Servo 24 VDC)Applicable To The JXC Series

The SMC LEY40A-200M-S5C918 is a versatile electric actuator from the LEY Series, designed for precision and efficiency. This rod type step motor operates on a 24 VDC servo, making it compatible with the JXC Series controllers. It features a long stroke capability of up to 500 mm, allowing for extensive reach in various applications. The actuator offers flexible mounting options with direct mounting in three directions and bracket mounting in three types. Equipped with an auto switch, the LEY40A-200M-S5C918 supports speed control and positioning with a maximum of 64 points, providing either positioning or pushing control. This feature enables the actuator to hold its position while applying force to a workpiece, ensuring stability and precision. With a positioning repeatability of ±0.02 mm or less, it guarantees accurate and consistent performance. The actuator is built to withstand challenging environments with its IP65 dust and drip-proof specification. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, and others, ensuring seamless integration into existing systems. Additionally, the LEY Series AC Servo Motor offers high output options (100/200/400 W) and improved high-speed transfer ability, with high acceleration compatibility up to 5,000 mm/S2. The actuator includes a pulse input type and an internal absolute encoder, further enhancing its precision and reliability. Compatible with various drivers, such as LECSA, LECSB(-T), and LECSS, this actuator is a robust solution for demanding industrial applications.
