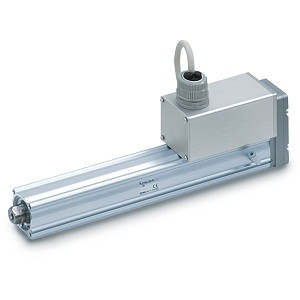

LEY Series Electric Actuator/ Rod Type Step Motor(Servo 24 VDC)Applicable To The JXC Series
Series LEY Step Motor (Servo/24 VDC) Servo Motor (24 VDC);
Long stroke: Max. 500 mm;Direct mounting: 3 directions, Bracket mounting: 3 types;Auto switch can be mounted;Speed control/Positioning: Max. 64 points;Either positioning or pushing control can be selected; Possible to hold the actuator with the rod pushing to a workpiece, etc;Positioning repeatability: ±0.02 mm or less;Dust/Drip proof (IP65) specification;Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, LECP6 (Manufacture Discontinued), LECPMJ (Manufacture Discontinued);;Series LEY AC Servo Motor;High output motor (100/200/400 W);Improved high speed transfer ability;High acceleration compatible (5,000 mm/S2);Pulse input type;With internal absolute encoder;Positioning repeatability: ±0.02 mm or less;Dust/Drip proof (IP65) specification;Compatible drivers: LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY , LECSB-S (Manufacture Discontinued), LECSC-S (Manufacture Discontinued), LECSS-S (Manufacture Discontinued)
