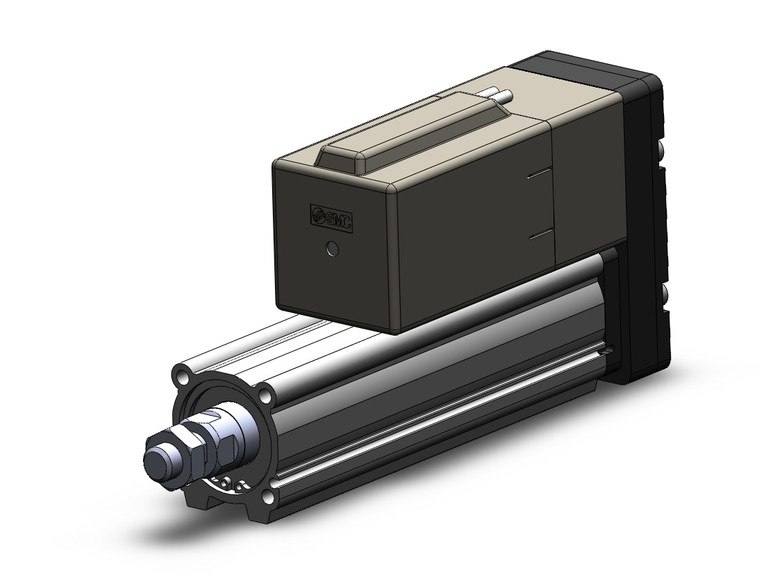

SMC LEY40C-100WM LEY Series Electric Actuator/Rod Type Step Motor(Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,260.00
The SMC LEY40C-100WM Electric Actuator from the LEY Series is engineered for precision and versatility in industrial automation applications. This rod-type step motor, powered by a 24 VDC servo motor, is designed to deliver exceptional performance with a long stroke capability of up to 500 mm. Its robust construction supports direct mounting in three directions and offers three types of bracket mounting, ensuring seamless integration into various systems.
Engineered for precision, the LEY40C-100WM features a positioning repeatability of ±0.02 mm or less, making it ideal for applications requiring high accuracy. The actuator supports both positioning and pushing control, allowing it to maintain pressure against a workpiece when necessary. With a maximum of 64 programmable speed and positioning points, it offers extensive control flexibility.
The actuator is built to withstand challenging environments, boasting a dust and drip-proof IP65 rating. It is compatible with a range of controllers, including JXC51, JXC61, and others, providing adaptability to existing systems. The high output motor options (100/200/400 W) enhance its high-speed transfer capabilities, while the internal absolute encoder ensures precise feedback and control.
For engineers and manufacturing professionals seeking a reliable and adaptable solution, the SMC LEY40C-100WM Electric Actuator is a top-tier choice, offering advanced features and robust performance for a wide range of industrial applications.
- Size:
- 40
- Motor Mounting Position:
- Top Mounting
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 2.5 mm, Size25: 3 mm, Size32: 4 mm
- Stroke:
- Stroke 100 mm
- Motor Option:
- With Lock And Cover
- Rod End Thread:
- Rod End Male Thread
- Mounting Style:
- Both Ends Tapped Style/Body Bottom Tapped Style
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
- Made To Order:
- Standard
