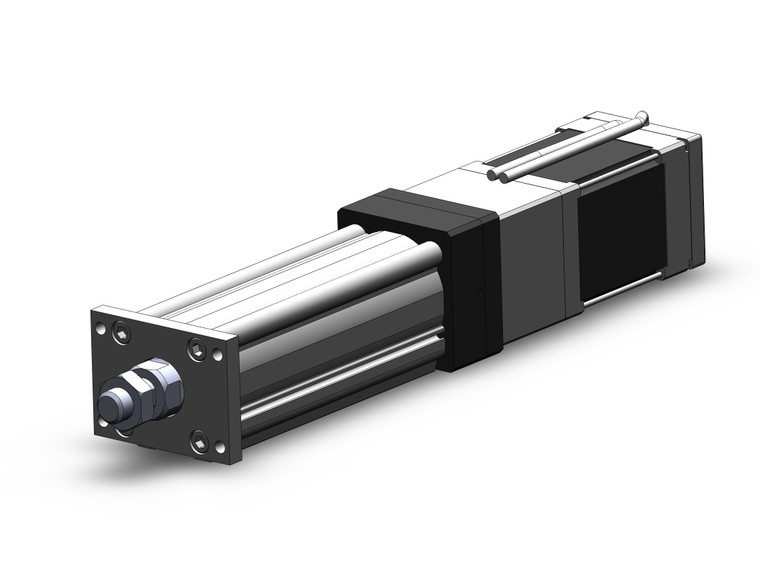

SMC LEY40DC-50BMF-S5C918 Rod Type Electric Actuator

SMC LEY40DC-50BMF-S5C918 LEY Series Electric Actuator/ Rod Type Step Motor(Servo 24 VDC)Applicable To The JXC Series

SMC
SKU:
LEY40DC-50BMF-S5C918
$1,910.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

LEY Series Electric Actuator/ Rod Type Step Motor(Servo 24 VDC)Applicable To The JXC Series

Series LEY Step Motor (Servo/24 VDC) Servo Motor (24 VDC);

  • Long stroke: Max. 500 mm;
  • Direct mounting: 3 directions, Bracket mounting: 3 types;
  • Auto switch can be mounted;
  • Speed control/Positioning: Max. 64 points;
  • Either positioning or pushing control can be selected; Possible to hold the actuator with the rod pushing to a workpiece, etc;
  • Positioning repeatability: ±0.02 mm or less;
  • Dust/Drip proof (IP65) specification;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, LECP6 (Manufacture Discontinued), LECPMJ (Manufacture Discontinued);;Series LEY AC Servo Motor;
  • High output motor (100/200/400 W);
  • Improved high speed transfer ability;
  • High acceleration compatible (5,000 mm/S2);
  • Pulse input type;
  • With internal absolute encoder;
  • Positioning repeatability: ±0.02 mm or less;
  • Dust/Drip proof (IP65) specification;
  • Compatible drivers: LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY , LECSB-S (Manufacture Discontinued), LECSC-S (Manufacture Discontinued), LECSS-S (Manufacture Discontinued)
    • Additional Information
    Size:
    40
    Motor Mounting Position:
    Straight Type
    Motor Type:
    Step Motor (Servo 24 VDC)
    Lead:
    Size16:2.5mm,Size25:3mm,Size32/40:4mm
    Stroke:
    Stroke 50mm
    Motor Option:
    With Lock
    Rod End Thread:
    Rod End Male Thread
    Mounting Style:
    Rod Flange
    Actuator Cable Type/Length:
    Standard Cable 5m
    Communication Protocol:
    EtherNet/IP
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis Specification:Standard
    Mounting:
    DIN Rail Mounting
    Communication Plug Connector I/O Cable:
    Without Controller Or Without Plug Connector
