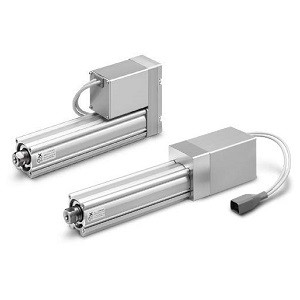

SMC LEY40GA-400WM LEY G Series High Performance Electric Actuator Rod Type Battery-less Absolute (Step Motor 24 VDC)

SMC LEY40GA-400WM LEY G Series High Performance Electric Actuator Rod Type Battery-less Absolute (Step Motor 24 VDC)

SMC
SKU:
LEY40GA-400WM
Availability:
Contact us to confirm availability and lead times.
$1,598.25
Condition:
New
Current Stock:
Description

LEY G Series High Performance Electric Actuator Rod Type Battery-less Absolute (Step Motor 24 VDC)

  • Reduces cycle time; Cycle time: Reduced by 33% (0.65 s ? 0.97 s) compared with the existing model?; Acceleration/Deceleration: 10000 mm/s2 (334% increase compared with the existing model); Max. speed: 700 mm/s (Improved by 40% compared with the existing model); ?When LEY25GA-300 is operated from 0 to 300 mm (stroke);
  • Battery-less absolute encoder compatible; Easy operation restart after recovery of the power supply; Maintenance labor can be reduced as the product does not require the use of batteries;
  • Compatible controllers?JXC5H, JXC6H, JXCEH, JXC9H, JXCPH
    • Additional Information
    Size:
    40
    Motor Mounting Position/Motor Cover Direction:
    Motor Mounting Position: Top Mounting
    Motor Type:
    High Performance Type (Battery-less Absolute)
    Lead:
    Size16: 10 mm, Size25: 12 mm, Size40: 16 mm
    Stroke:
    Stroke 400 mm
    Motor Option:
    With Lock And Cover
    Rod End Thread:
    Rod End Male Thread
    Mounting Style:
    Both Ends Tapped Style/Body Bottom Tapped Style
    Actuator Cable Type/Length:
    Without Cable
    Communication Protocol Input/Output:
    Without Controller
    Number Of Axes/Special Specification:
    Without Controller
    Mounting:
    Without Controller
    Communication Plug Connector I/O Cable:
    Without Controller Or Without Accessory
