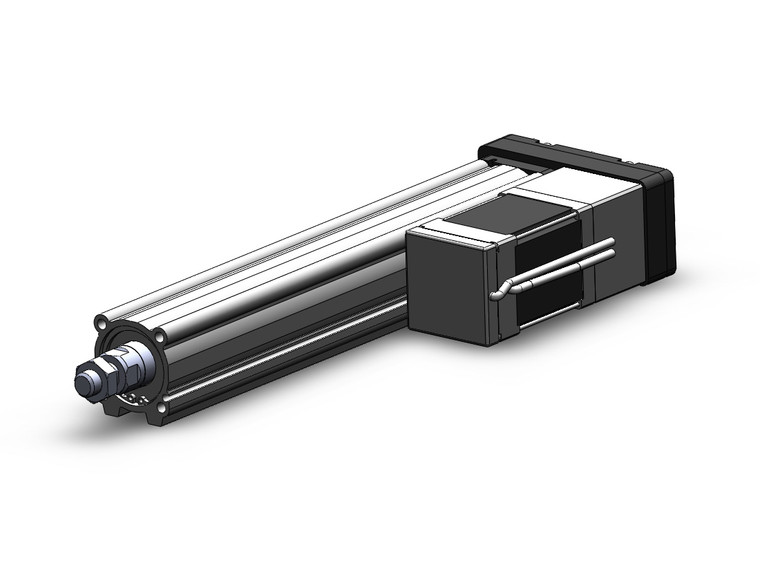

SMC LEY40LC-200BMD LEY Series Electric Actuator/Rod Type Step Motor(Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,285.00
The SMC LEY40LC-200BMD is a versatile electric actuator from the LEY Series, designed for precision and efficiency. This rod type step motor operates on a 24 VDC servo motor, offering a long stroke capability of up to 500 mm. It features flexible mounting options with direct mounting in three directions and bracket mounting in three types. The actuator supports auto switch installation and provides advanced speed control and positioning with a maximum of 64 points. Users can choose between positioning or pushing control, with the ability to hold the actuator in place while the rod pushes against a workpiece. It boasts a positioning repeatability of ±0.02 mm or less and is built to withstand harsh environments with its IP65 dust and drip-proof specification. Compatible with a range of controllers, including JXC51, JXC61, and others, this actuator is ideal for applications requiring high output motors (100/200/400 W), improved high-speed transfer, and high acceleration up to 5,000 mm/S2. It includes a pulse input type and an internal absolute encoder for precise operations. The LEY40LC-200BMD is also compatible with various drivers, ensuring seamless integration into your automation systems.
- Size:
- 40
- Motor Mounting Position:
- Left Side Parallel
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 2.5 mm, Size25: 3 mm, Size32: 4 mm
- Stroke:
- Stroke 200 mm
- Motor Option:
- With Lock
- Rod End Thread:
- Rod End Male Thread
- Mounting Style:
- Double Clevis Style
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
- Made To Order:
- Standard
