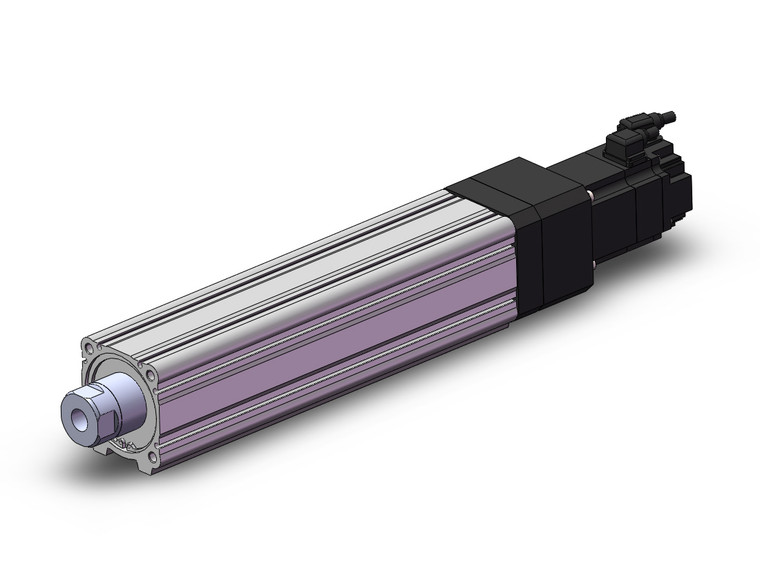

SMC LEY63DS4C-200-S2A2H LEY63-AC Series Electric Actuator/Rod Type AC Servo Motor
SMC
$3,925.00
The SMC LEY63DS4C-200-S2A2H is a versatile electric actuator from the LEY63-AC Series, designed for precision and efficiency. This rod type AC servo motor is equipped with a 24 VDC servo motor, offering a long stroke capability of up to 500 mm. It features flexible mounting options with direct mounting in three directions and bracket mounting in three types, making it adaptable to various applications. The actuator supports auto switch mounting and provides advanced speed control and positioning with a maximum of 64 points. Users can choose between positioning or pushing control, allowing the actuator to hold its position against a workpiece. With a positioning repeatability of ±0.02 mm or less, it ensures high precision in operations. The actuator is built to withstand challenging environments with its IP65 dust and drip-proof specification. It is compatible with a range of controllers, including JXC51, JXC61, and others, although some models have been discontinued. The LEY63-AC Series also boasts a high output motor available in 100, 200, or 400 W, enhancing its high-speed transfer ability and high acceleration compatibility of up to 5,000 mm/S². It includes a pulse input type and an internal absolute encoder for precise control. The actuator is compatible with various drivers, ensuring seamless integration into existing systems.
- Accuracy:
- Basic
- Size:
- 63
- Motor Mounting Position:
- Straight
- Motor Type:
- AC servo motor(Incremental encoder), Output 400W
- Lead:
- 5 mm
- Stroke:
- Stroke 200 mm
- Dust/Drip proof:
- IP5x (Dust proof specification)
- Motor Option:
- Without Lock
- Rod End Thread:
- Rod End Female Thread
- Mounting Style:
- Ends Tapped (Standard)
- Cable Type:
- Standard Cable
- Cable Length:
- 2 m
- Driver Type:
- LECSA2, Power Supply Voltage 200V To 230V
- I/O Cable Length:
- Without Cable (Connector Only)
