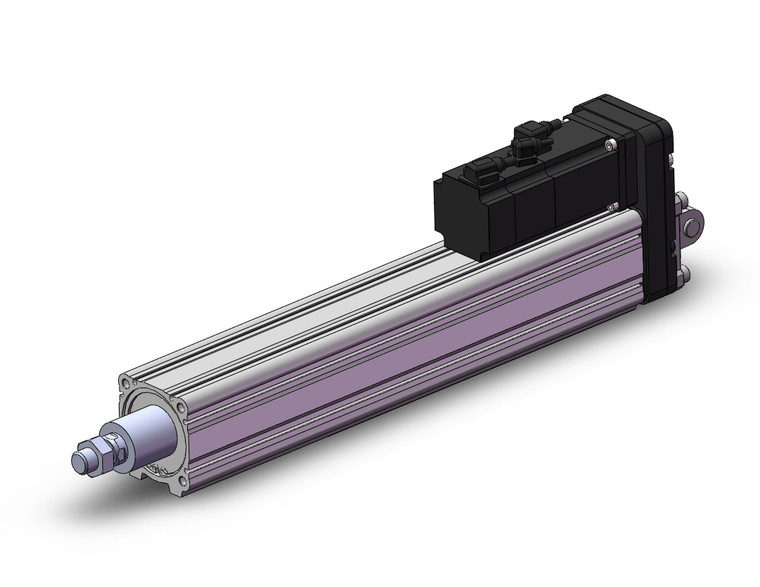

SMC LEY63S4B-300BMD-R5A21 LEY63-AC Series Electric Actuator/Rod Type AC Servo Motor

The SMC LEY63S4B-300BMD-R5A21 is a versatile electric actuator from the LEY63-AC Series, designed for precision and efficiency in industrial applications. This rod type AC servo motor features a long stroke capability of up to 500 mm, allowing for extensive reach and flexibility in various setups. It offers multiple mounting options, including direct mounting in three directions and bracket mounting with three types, ensuring adaptability to different environments. Equipped with an auto switch, this actuator supports speed control and positioning with a maximum of 64 points, providing precise control over movement. Users can choose between positioning or pushing control, making it possible to hold the actuator with the rod pushing against a workpiece. The actuator boasts a positioning repeatability of ±0.02 mm or less, ensuring high accuracy in operations. Built to withstand challenging conditions, the LEY63S4B-300BMD-R5A21 is dust and drip-proof with an IP65 rating. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The series also features a high output motor available in 100/200/400 W, enhancing high-speed transfer capabilities and supporting high acceleration up to 5,000 mm/S². With a pulse input type and an internal absolute encoder, this actuator ensures reliable and consistent performance in demanding applications. Additionally, it is compatible with various drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and others, although some have been discontinued.
