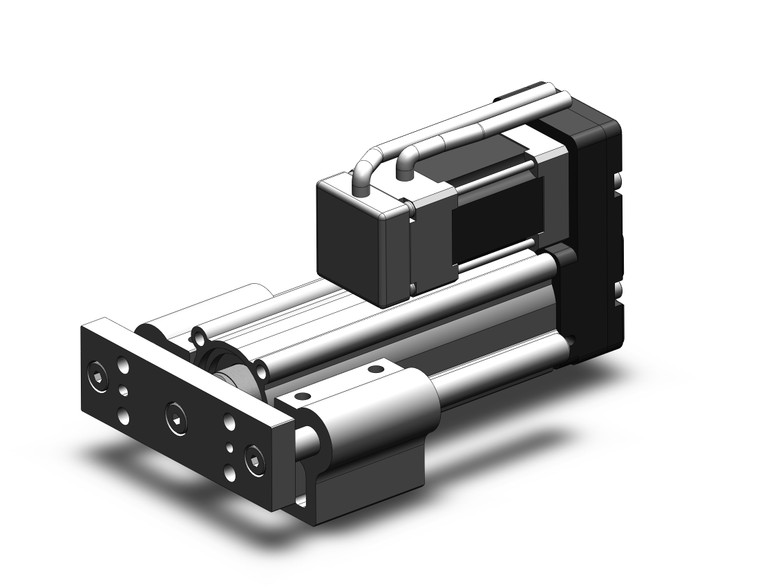

SMC LEYG16LB-30-R3 guide rod type electric actuator

SMC LEYG16LB-30-R3 LEYG Series Electric Actuator/Guide Rod Type Step Motor(Servo/24 VDC) Servo Motor(24 VDC)

SMC
SKU:
LEYG16LB-30-R3
$1,067.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

LEYG Series Electric Actuator/Guide Rod Type Step Motor(Servo/24 VDC) Servo Motor(24 VDC)

Series LEYG Step Motor (Servo/24 VDC) Servo Motor (24 VDC);

  • Compact integration of guide rods; Achieves lateral load resistance and high non-rotating accuracy;
  • Lateral end load: 5 times more (compared with rod type, size 25 and; 100 stroke);
  • Compatible with sliding bearing and ball bushing bearing; Compatible with moment load and stopper (sliding bearing);
  • Speed control/Positioning: Max. 64 points;
  • Positioning and pushing control can be selected; Possible to hold the actuator when pushing the rod to a workpiece, etc;
  • Positioning repeatability: ±0.02 mm or less;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, LECP6 (Manufacture Discontinued), LECPMJ (Manufacture Discontinued);;Series LEYG AC Servo Motor;
  • High output motor (100/200 W);
  • Improved high speed transfer ability;
  • High acceleration/deceleration compatible (5,000mm/S2);
  • Pulse input type;
  • With internal absolute encoder;
  • Compatible drivers: LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY , LECSB-S (Manufacture Discontinued), LECSC-S (Manufacture Discontinued), LECSS-S (Manufacture Discontinued)
    • Additional Information
    Size:
    16
    Bearing Type:
    Ball Bushing Bearing
    Motor Mounting Position:
    Top Mounting
    Motor Type:
    Step Motor (Servo 24 VDC)
    Lead:
    Size16: 5 mm, Size25: 6 mm, Size32/40: 8 mm
    Stroke:
    Stroke 30 mm
    Motor Option:
    Without Lock
    Guide Option:
    None
    Actuator Cable Type:
    Robotic Cable (Flexible Cable)
    Actuator Cable Length:
    3 m
    Controller Type:
    Without Controller
    I/O Cable Length, Communication Plug:
    Without Cable, Without Communication Plug Connector
    Controller Mounting:
    Screw Mounting
