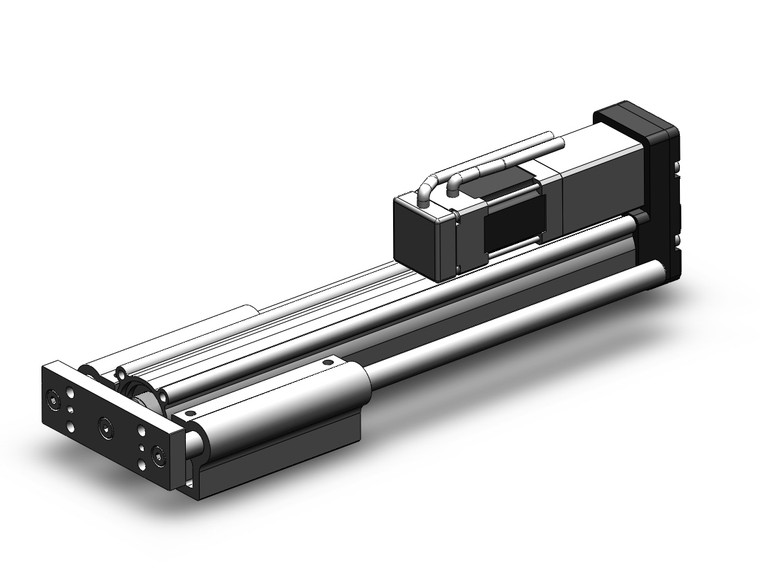

SMC LEYG16MA-150B-R5AP5D LEYG Series Electric Actuator/Guide Rod Type Step Motor(Servo/24 VDC) Servo Motor(24 VDC)

The SMC LEYG16MA-150B-R5AP5D is a cutting-edge electric actuator from the LEYG Series, designed to deliver exceptional performance with its guide rod type step motor and servo motor, both operating at 24 VDC. This actuator is engineered for compact integration, featuring guide rods that provide superior lateral load resistance and high non-rotating accuracy. It boasts a lateral end load capacity that is five times greater than traditional rod types, particularly in size 25 with a 100 stroke. This versatile actuator is compatible with both sliding and ball bushing bearings, making it suitable for handling moment loads and incorporating stoppers when using sliding bearings. It offers advanced speed control and positioning capabilities, supporting up to 64 distinct points. Users can select between positioning and pushing control, with the ability to maintain the actuator's position when the rod is in contact with a workpiece. The actuator ensures precise operation with a positioning repeatability of ±0.02 mm or less. The LEYG16MA-150B-R5AP5D is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. Additionally, the series features a high output AC servo motor available in 100/200 W, enhancing high-speed transfer capabilities and supporting high acceleration/deceleration up to 5,000mm/S2. The actuator is equipped with a pulse input type and an internal absolute encoder, ensuring reliable and precise operation. Compatible drivers include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and several discontinued models.
