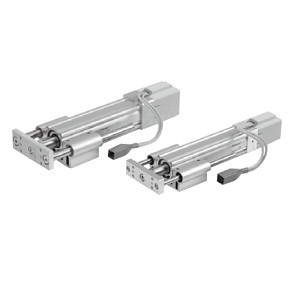

SMC LEYG16MA-150C-R5C917 LEYG Series Electric Actuator/Guide Rod Type Step Motor (Servo 24 VDC) Applicable To The JXC Series

The SMC LEYG16MA-150C-R5C917 is a cutting-edge electric actuator from the LEYG Series, designed to deliver exceptional performance and precision. This guide rod type step motor operates on a 24 VDC servo, making it perfectly compatible with the JXC Series controllers. Key features include a compact integration of guide rods, which enhances lateral load resistance and ensures high non-rotating accuracy. The actuator can handle lateral end loads up to five times more than traditional rod types, particularly in size 25 with a 100-stroke configuration. It is versatile, supporting both sliding bearing and ball bushing bearing options, and is compatible with moment loads and stoppers when using a sliding bearing. The LEYG Series offers advanced speed control and positioning capabilities, with a maximum of 64 programmable points. Users can select between positioning and pushing control, allowing the actuator to maintain its position when applying force to a workpiece. It boasts a remarkable positioning repeatability of ±0.02 mm or less. This actuator is compatible with a wide range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The LEYG Series also features a high output motor available in 100/200 W, offering improved high-speed transfer capabilities and compatibility with high acceleration/deceleration rates of up to 5,000mm/S2. It includes a pulse input type and an internal absolute encoder for enhanced precision. Compatible drivers for this actuator include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and some discontinued models like LECSB-S, LECSC-S, and LECSS-S. The SMC LEYG16MA-150C-R5C917 is an ideal choice for applications requiring high precision, reliability, and versatility in motion control.
