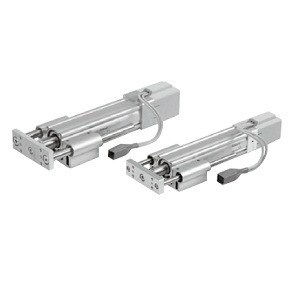

SMC LEYG16MA-50C-R3CL17 LEYG Series Electric Actuator/Guide Rod Type Step Motor (Servo 24 VDC) Applicable To The JXC Series

The SMC LEYG16MA-50C-R3CL17 Electric Actuator from the LEYG Series is a precision-engineered solution designed for high-performance applications in industrial automation. This guide rod type step motor, powered by a 24 VDC servo, is specifically compatible with the JXC Series controllers, ensuring seamless integration into your existing systems. Engineered for robustness, the LEYG16MA-50C-R3CL17 features a compact integration of guide rods, providing exceptional lateral load resistance and high non-rotating accuracy. It supports a lateral end load capacity that is five times greater than traditional rod types, particularly in size 25 with a 100 mm stroke. This makes it ideal for applications requiring enhanced stability and precision. The actuator is versatile, compatible with both sliding and ball bushing bearings, and can handle moment loads and stoppers when using sliding bearings. It offers advanced speed control and positioning capabilities, with a maximum of 64 programmable points. The actuator's positioning repeatability is an impressive ±0.02 mm or less, ensuring consistent and reliable performance. For engineers seeking flexibility, the LEYG16MA-50C-R3CL17 allows for both positioning and pushing control, with the ability to maintain actuator position when the rod is in contact with a workpiece. This feature is particularly beneficial in applications requiring precise force control. The actuator is compatible with a wide range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, among others. It also supports high output motors (100/200 W) and is designed for high-speed transfer with acceleration/deceleration capabilities of up to 5,000 mm/s². Equipped with an internal absolute encoder and pulse input type, the LEYG16MA-50C-R3CL17 ensures precise control and feedback. Compatible drivers include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, providing a comprehensive range of options for system integration. Optimize your manufacturing processes with the SMC LEYG16MA-50C-R3CL17, a reliable and efficient actuator designed to meet the demanding needs of modern industrial environments.
