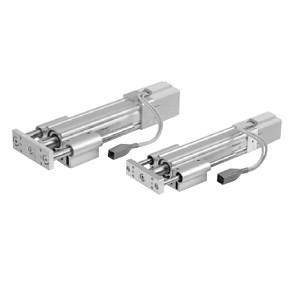

SMC LEYG25LDA-300W-R5C918 LEYG Series Electric Actuator/Guide Rod Type Step Motor (Servo 24 VDC) Applicable To The JXC Series

The SMC LEYG25LDA-300W-R5C918 is a high-performance electric actuator from the LEYG Series, designed for precision and efficiency. This guide rod type step motor operates on a 24 VDC servo system, making it compatible with the JXC Series controllers. Its compact design integrates guide rods to provide exceptional lateral load resistance and high non-rotating accuracy, making it ideal for applications requiring precise positioning and control. Key features include a lateral end load capacity that is five times greater than traditional rod types, especially in size 25 with a 100mm stroke. The actuator is compatible with both sliding and ball bushing bearings, allowing it to handle moment loads and incorporate a stopper with the sliding bearing. It offers speed control and positioning capabilities with a maximum of 64 points, and users can select between positioning and pushing control. The actuator can maintain its position when pushing the rod against a workpiece, ensuring reliable operation. With a positioning repeatability of ±0.02 mm or less, the LEYG25LDA-300W-R5C918 ensures precise and consistent performance. It supports a range of compatible controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The series also features a high output motor with 100/200 W options, improved high-speed transfer ability, and compatibility with high acceleration/deceleration rates of up to 5,000mm/S2. The actuator includes an internal absolute encoder and supports pulse input type, ensuring seamless integration with compatible drivers such as LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some discontinued models. Overall, the SMC LEYG25LDA-300W-R5C918 is a versatile and reliable solution for applications demanding high precision, speed, and load handling capabilities.
