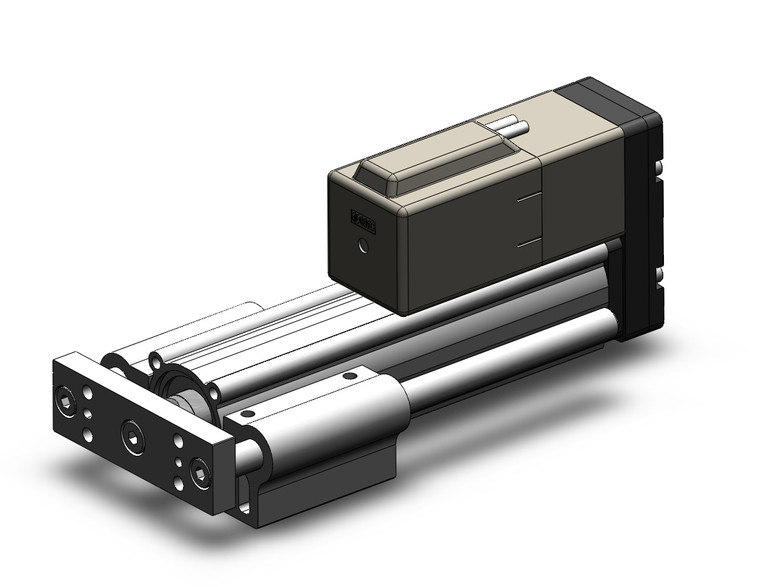

SMC LEYG25MB-100W LEYG Series Electric Actuator/Guide Rod Type Step Motor(Servo/24 VDC) Servo Motor(24 VDC)

The SMC LEYG25MB-100W is a cutting-edge electric actuator from the LEYG Series, designed for precision and efficiency. This guide rod type step motor, powered by a 24 VDC servo motor, offers a compact integration of guide rods, ensuring exceptional lateral load resistance and high non-rotating accuracy. It boasts a lateral end load capacity that is five times greater than traditional rod types, specifically in size 25 with a 100 stroke. This actuator is compatible with both sliding and ball bushing bearings, making it versatile for various applications. It supports moment load and stopper functions with sliding bearings, and offers advanced speed control and positioning capabilities with a maximum of 64 points. Users can select between positioning and pushing control, with the ability to hold the actuator when the rod is pushed against a workpiece, ensuring precise operations with a positioning repeatability of ±0.02 mm or less. The LEYG Series is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The AC servo motor variant offers high output (100/200 W) and improved high-speed transfer capabilities, with high acceleration/deceleration compatibility up to 5,000mm/S2. It features a pulse input type and comes with an internal absolute encoder for enhanced performance. Compatible drivers include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and several discontinued models. This actuator is ideal for applications requiring precision, reliability, and high performance.
