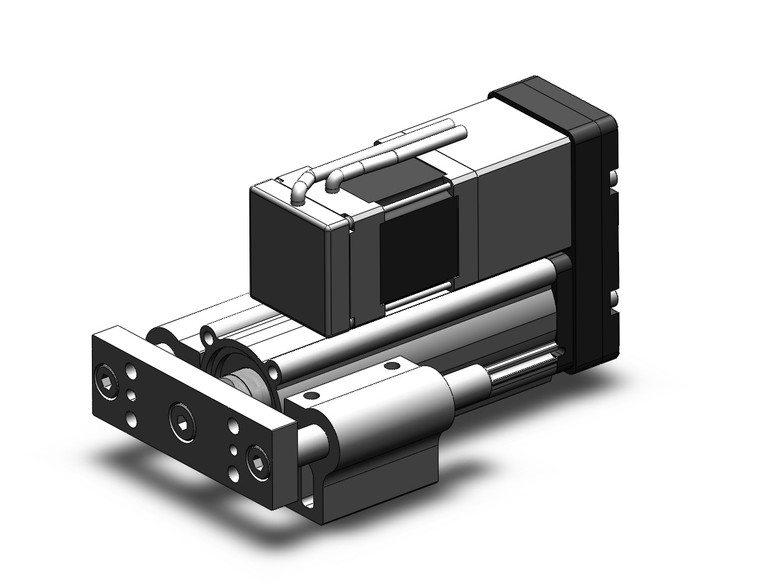

SMC LEYG25MB-30B LEYG Series Electric Actuator/Guide Rod Type Step Motor(Servo/24 VDC) Servo Motor(24 VDC)

The SMC LEYG25MB-30B is a versatile electric actuator from the LEYG Series, designed for precision and efficiency. This guide rod type step motor, powered by a 24 VDC servo motor, offers a compact integration of guide rods, providing exceptional lateral load resistance and high non-rotating accuracy. It boasts a lateral end load capacity that is five times greater than traditional rod types, specifically in size 25 with a 100mm stroke. This actuator is compatible with both sliding and ball bushing bearings, making it suitable for various applications, including those requiring moment load and stopper capabilities. With speed control and positioning options of up to 64 points, it allows for precise positioning and pushing control, ensuring the actuator can hold its position when pushing the rod against a workpiece. The positioning repeatability is an impressive ±0.02 mm or less. The LEYG Series is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. Additionally, the series features a high output motor (100/200 W) that enhances high-speed transfer capabilities and supports high acceleration/deceleration up to 5,000mm/S2. It includes a pulse input type and an internal absolute encoder for precise control. Compatible drivers include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models also discontinued. This actuator is ideal for applications demanding high precision and reliability.
