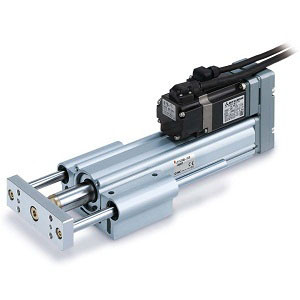

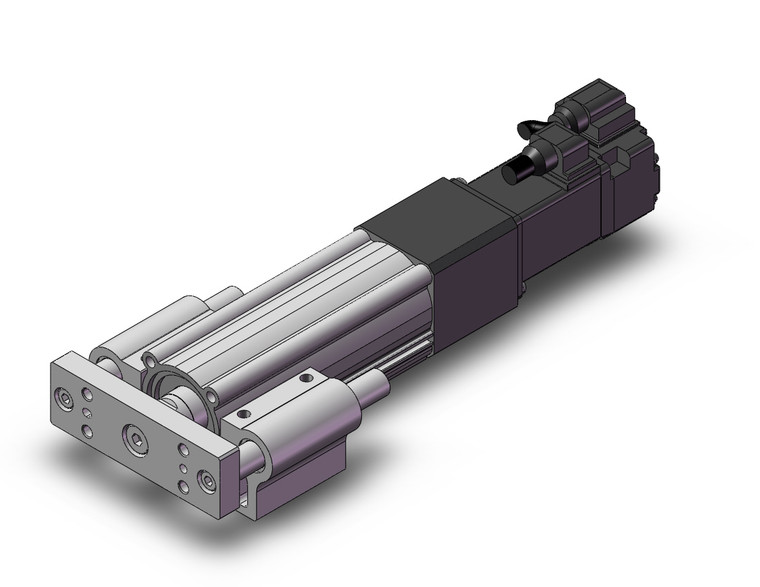

SMC LEYG25MDS6C-30-R5B1H LEYG-AC Series Electric Actuator/Guide Rod Type AC Servo Motor

The SMC LEYG25MDS6C-30-R5B1H is a cutting-edge electric actuator from the LEYG-AC Series, designed to deliver exceptional performance and precision. This actuator features a compact integration of guide rods, providing superior lateral load resistance and high non-rotating accuracy. It boasts a lateral end load capacity that is five times greater than traditional rod types, making it ideal for demanding applications. The actuator is compatible with both sliding bearing and ball bushing bearing, ensuring versatility in various setups. It supports moment load and stopper functions with the sliding bearing, enhancing its adaptability. With speed control and positioning capabilities of up to 64 points, this actuator offers precise control over movement and positioning. Users can select between positioning and pushing control, allowing the actuator to hold its position when pushing the rod against a workpiece. It achieves remarkable positioning repeatability of ±0.02 mm or less, ensuring consistent and reliable performance. The LEYG25MDS6C-30-R5B1H is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. It features a high output motor with 100/200 W power, offering improved high-speed transfer ability and compatibility with high acceleration/deceleration rates of up to 5,000mm/S2. Equipped with an internal absolute encoder and pulse input type, this actuator ensures precise and reliable operation. It is compatible with various drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and some discontinued models like LECSB-S, LECSC-S, and LECSS-S. The SMC LEYG25MDS6C-30-R5B1H is the perfect choice for applications requiring high precision, reliability, and adaptability.
