Description

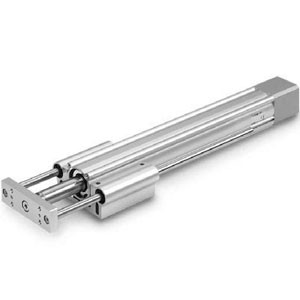

LEYG, Electric Actuator, Guide Rod, Motorless
The LEYG actuator is a rod type ball screw actuator paired with a bolt-on bearing block with double guide rods to resist rotational and lateral loads. The LEYG motorless version permits the mounting of an AC servo motor other than the standard chosen by SMC. Shaft coupling and mounting patterns are compatible with 8 servo motor series from 5 manufacturers. Manufacturers include Mitsubishi, Yaskawa, Sanyo Denki, Omron, and Panasonic.
- Body sizes: 25, 32- Maximum work load: 44 kg (vertical)
- Maximum pushing force: 736 N
- Maximum speed: 1200 mm/s
- Maximum acceleration: 5,000 mm/s
- Maximum stroke: 300 mm
- Positioning repeatability: 0.02 mm
- Bearing types: sliding bushings or ball bushing bearings
- Non-rotating accuracy of plate: 0.05 0.06 (ball bushing bearing)
