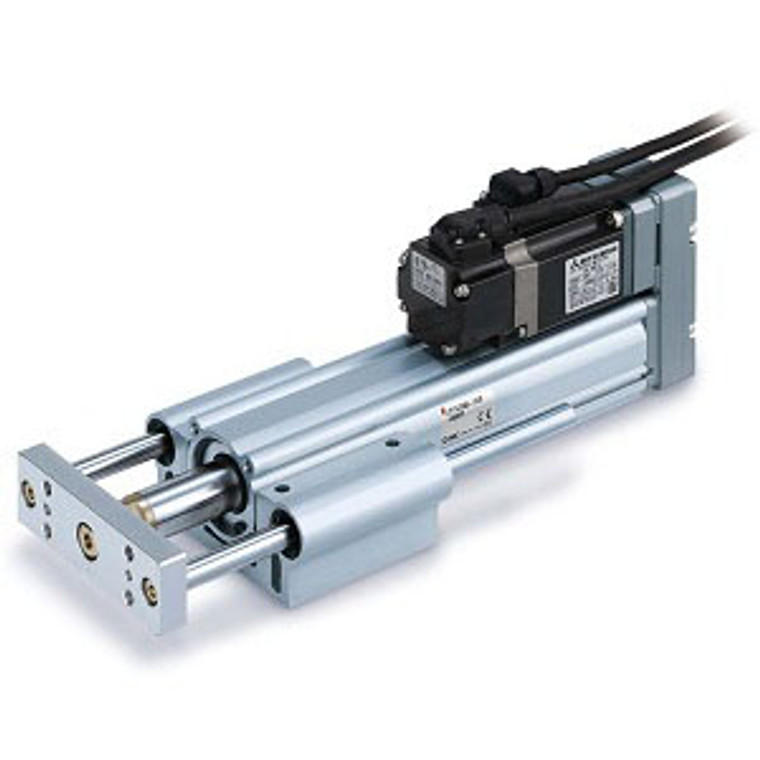

SMC LEYG32LDT7C-100 LEYG Series Electric Actuator/Guide Rod Type AC Servo Motor Corresponding To LECS -T Series Driver

SMC LEYG32LDT7C-100 LEYG Series Electric Actuator/Guide Rod Type AC Servo Motor Corresponding To LECS -T Series Driver

SMC
SKU:
LEYG32LDT7C-100
Availability:
Factory stock
$1,840.00
Condition:
New
Current Stock:
Description

LEYG Series Electric Actuator/Guide Rod Type AC Servo Motor Corresponding To LECS -T Series Driver

Series LEYG Step Motor (Servo/24 VDC) Servo Motor (24 VDC);

  • Compact integration of guide rods; Achieves lateral load resistance and high non-rotating accuracy;
  • Lateral end load: 5 times more (compared with rod type, size 25 and;?100 stroke);
  • Compatible with sliding bearing and ball bushing bearing; Compatible with moment load and stopper (sliding bearing);
  • Speed control/Positioning: Max. 64 points;
  • Positioning and pushing control can be selected; Possible to hold the actuator when pushing the rod to a workpiece, etc;
  • Positioning repeatability: ±0.02 mm or less;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, LECP6 (Manufacture Discontinued), LECPMJ (Manufacture Discontinued);;Series LEYG AC Servo Motor;
  • High output motor (100/200 W);
  • Improved high speed transfer ability;
  • High acceleration/deceleration compatible (5,000mm/S2);
  • Pulse input type;
  • With internal absolute encoder;
  • Compatible drivers: LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY , LECSB-S (Manufacture Discontinued), LECSC-S (Manufacture Discontinued), LECSS-S (Manufacture Discontinued)
