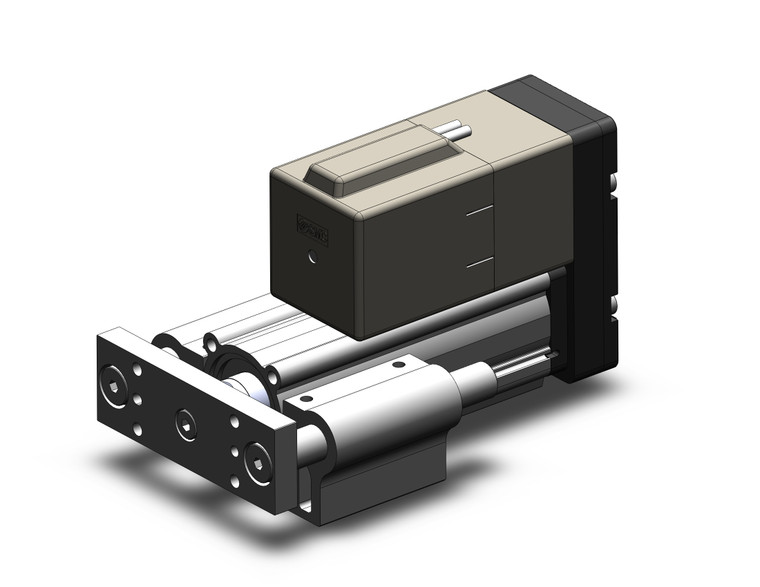

SMC LEYG32MC-50W LEYG Series Electric Actuator/Guide Rod Type Step Motor(Servo/24 VDC) Servo Motor(24 VDC)

The SMC LEYG32MC-50W is a versatile electric actuator from the LEYG Series, designed for precision and efficiency in industrial applications. This guide rod type step motor, powered by a 24 VDC servo motor, offers a compact integration of guide rods, providing exceptional lateral load resistance and high non-rotating accuracy. It boasts a lateral end load capacity that is five times greater than traditional rod types, particularly in size 25 with a 100mm stroke. This actuator is compatible with both sliding and ball bushing bearings, making it suitable for handling moment loads and incorporating stoppers with sliding bearings. It features advanced speed control and positioning capabilities, supporting up to 64 distinct points. Users can select between positioning and pushing control, with the ability to hold the actuator in place when the rod is pushed against a workpiece. The positioning repeatability is impressively precise at ±0.02 mm or less. The LEYG32MC-50W is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The series also includes a high output AC servo motor option, available in 100/200 W, which enhances high-speed transfer capabilities and supports high acceleration/deceleration up to 5,000mm/S2. It features a pulse input type and comes with an internal absolute encoder for precise control. Compatible drivers for this actuator include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models also discontinued. The SMC LEYG32MC-50W is engineered for demanding environments, offering robust performance and adaptability for a wide range of industrial automation tasks.
