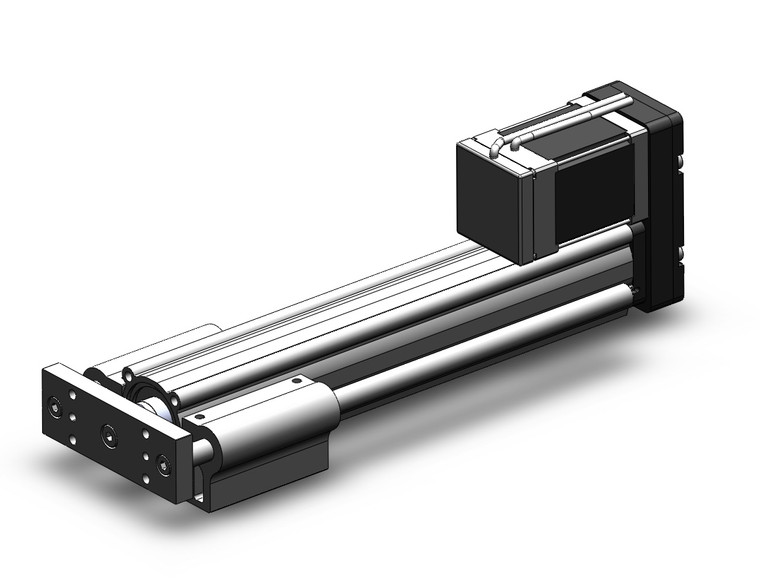

SMC LEYG40LC-200-R8 LEYG Series Electric Actuator/Guide Rod Type Step Motor(Servo/24 VDC) Servo Motor(24 VDC)

The SMC LEYG40LC-200-R8 is a cutting-edge electric actuator from the LEYG Series, designed for precision and efficiency. This guide rod type step motor, powered by a 24 VDC servo motor, offers a compact integration of guide rods, ensuring exceptional lateral load resistance and high non-rotating accuracy. It boasts a lateral end load capacity that is five times greater than traditional rod types, particularly in size 25 with a 100-stroke configuration. This actuator is compatible with both sliding and ball bushing bearings, making it versatile for various applications. It supports moment load and stopper functions when using a sliding bearing. With speed control and positioning capabilities of up to 64 points, the LEYG40LC-200-R8 allows for precise positioning and pushing control, even enabling the actuator to hold its position when pushing the rod against a workpiece. The actuator offers impressive positioning repeatability of ±0.02 mm or less, ensuring consistent performance. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. Equipped with a high output motor (100/200 W), the LEYG40LC-200-R8 enhances high-speed transfer capabilities and supports high acceleration/deceleration up to 5,000mm/S2. It features a pulse input type and comes with an internal absolute encoder for precise control. Compatible drivers include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models also discontinued. This actuator is an ideal choice for applications requiring high precision and reliability.
