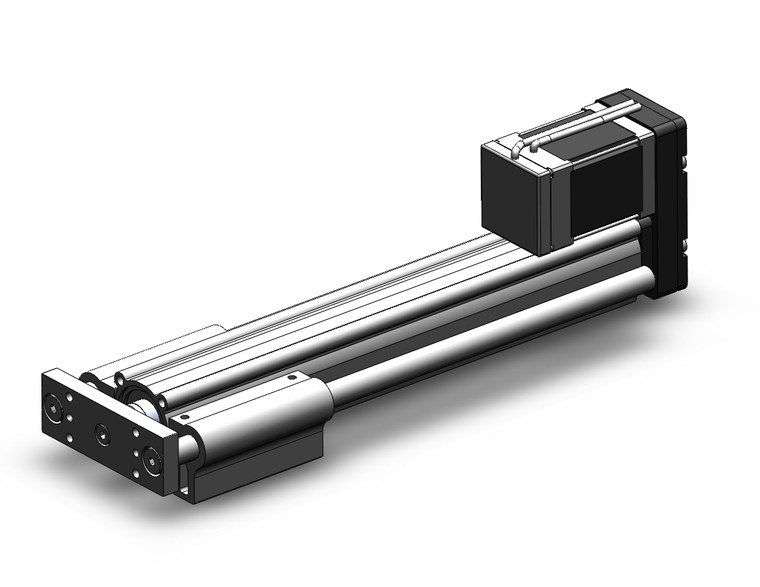

SMC LEYG40MB-250 LEYG Series Electric Actuator/Guide Rod Type Step Motor(Servo/24 VDC) Servo Motor(24 VDC)

The SMC LEYG40MB-250 is a cutting-edge electric actuator from the LEYG Series, designed for precision and efficiency. This guide rod type step motor, powered by a 24 VDC servo motor, offers a compact integration of guide rods, ensuring exceptional lateral load resistance and high non-rotating accuracy. It boasts a lateral end load capacity that is five times greater than traditional rod types, particularly in size 25 with a 100-stroke configuration. This actuator is versatile, compatible with both sliding and ball bushing bearings, and can handle moment loads and stoppers when using sliding bearings. It features advanced speed control and positioning capabilities, supporting up to 64 points for precise operations. Users can select between positioning and pushing control, with the ability to hold the actuator in place when the rod is pushed against a workpiece. The positioning repeatability is impressively accurate at ±0.02 mm or less. The LEYG Series is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. Additionally, the series features a high output AC servo motor with 100/200 W power, enhancing high-speed transfer capabilities and supporting high acceleration/deceleration up to 5,000mm/S2. It includes a pulse input type and an internal absolute encoder for precise control. Compatible drivers include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models also discontinued. This actuator is ideal for applications requiring high precision and reliability.
