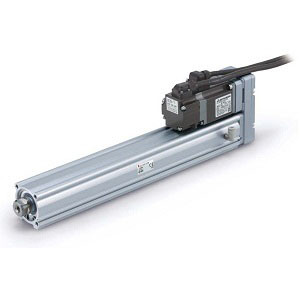

SMC LEYH32S7A-250BMF-RAS2H-X5 LEY-X5-AC Series Electric Actuator/Rod Type AC Servo Motor Dust/Drip proof specification (IP65)

SMC LEYH32S7A-250BMF-RAS2H-X5 LEY-X5-AC Series Electric Actuator/Rod Type AC Servo Motor Dust/Drip proof specification (IP65)

SMC
SKU:
LEYH32S7A-250BMF-RAS2H-X5
$0.00
Condition:
New
Current Stock:
Description

LEY-X5-AC Series Electric Actuator/Rod Type AC Servo Motor Dust/Drip proof specification (IP65)

  • Enclosure: IP65 equivalent;
  • Max. stroke: 500 mm
    • Additional Information
    Accuracy:
    High Precision Type
    Size:
    32
    Motor Mounting Position:
    Top Mounting
    Motor Type:
    AC Servo Motor(Absolute Encoder), Output 200W, Actuator Size 32 mm
    Lead:
    Size25:12 mm, Size32&Motor Mounting Position In-line:16 mm, Size32&Motor Mounting Position Parallel:20 mm
    Stroke:
    Stroke 250 mm
    Motor Option:
    With Lock
    Rod End Thread:
    Rod End Male Thread
    Mounting Style:
    Rod Side Flange Style
    Cable Type:
    Robotic Cable(Flexible Cable)
    Cable Length:
    10 m
    Driver Type:
    LECSS2-T, Power Supply Voltage 200V To 240V
    I/O Cable Length:
    With Connector
