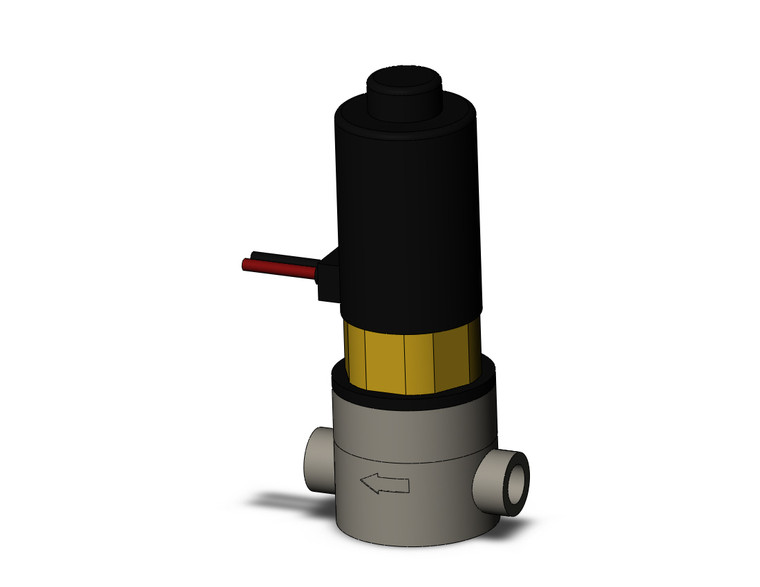

SMC LSP131-5B2 Solenoid Pump
- SKU:
- LSP131-5B2
- Condition:
- New
- Dispense Volume:
- 3 (100 to 200 L)
- Type:
- 1 (Body Ported)
- Voltage:
- 5 (24 VDC)
- Fluid Contact Material:
- B (Body= PEEK
- Diaphragm:
- FKM
- Check Valve:
- FKM)
- Port Size:
- 2 (M6)
Description
LSP, Liquid Dispense Pump
LSP series is a compact solenoid diaphragm pump for liquid. It dispenses fixed amount of liquid from 5uL to 200uL each time it is energized. Its diaphragm movement is supported by buffer, extending life of the product and improve its repeatability (+/- 1%) by restricting deformation of the diaphragm. LSP is used in applications such as medical analyzer, ink jet printing or semiconductor/solar cell production.
- Dispense volume up to 200 l.- Repeatability: 1%.
- Adjustment of dispense volume is possible.
- Shut-off function.
- Self-contained system.
-
