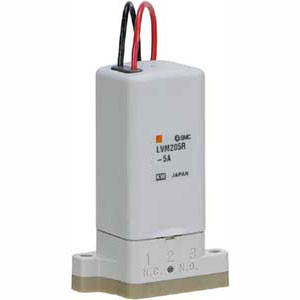

SMC LVM20R3-5A Chemical Valve, 2 Port

(No reviews yet) Write a Review
SKU:
LVM20R3-5A
Condition:
New
Symbol:
20R3 (Base Mounted, 2 Port, N.C., Port 1 IN, Port 2 OUT)
Function:
Standard
Voltage:
5 (24VDC)
Wetted Part Material:
A (Plate= PEEK
Diaphragm:
EPDM)
Sub-plate Material/Port Size:
w/o Sub-plate
Lead Wire Length:
300mm
CE Compliant:
None
  • SMC LVM20R3-5A chemical valve
  • SMC LVM20R3-5A Chemical Valve, 2 Port
  • SMC LVM20R3-5A Chemical Valve, 2 Port
  • SMC LVM20R3-5A Chemical Valve, 2 Port
  • SMC LVM20R3-5A Chemical Valve, 2 Port
  • SMC LVM20R3-5A Chemical Valve, 2 Port
  • SMC LVM20R3-5A Chemical Valve, 2 Port
  • SMC LVM20R3-5A Chemical Valve, 2 Port
  • SMC LVM20R3-5A Chemical Valve, 2 Port
  • SMC LVM20R3-5A Chemical Valve, 2 Port
  • SMC LVM20R3-5A Chemical Valve, 2 Port
$60.00

Related Products

<div class="product-description"><p>series lvm is a compact, direct acting, 2/3 port solenoid valve for chemicals. the unique construction reduces residual liquid to a minimum. superior resistance to chemicals requires less maintenance. service life (based on smc test conditions) is 10 million cycles or more.</p><ul><li>orifice diameter:?2mm? </li><li>power-saving circuit available</li><li>2 port n.c. or n.o. types; 3 port universal type </li><li>diaphragm choice of epdm, fkm or kalrez<span style="font-size: 10pt; font-family: 'lucida console'; mso-fareast-font-family: 'times new roman'; mso-bidi-font-family: 'times new roman'; mso-ansi-language: en-us; mso-fareast-language: en-us; mso-bidi-language: ar-sa">?</span> </li><li><span style="font-size: 10pt; font-family: 'lucida console'; mso-fareast-font-family: 'times new roman'; mso-bidi-font-family: 'times new roman'; mso-ansi-language: en-us; mso-fareast-language: en-us; mso-bidi-language: ar-sa">wetted part material: peek (body/plate)</span></li></ul><br><div class="product-files"><div><a target="_blank" href="https://automationdistribution.com/content/files/pdf/lvm_new.pdf"> series catalog</a></div></div></div>
