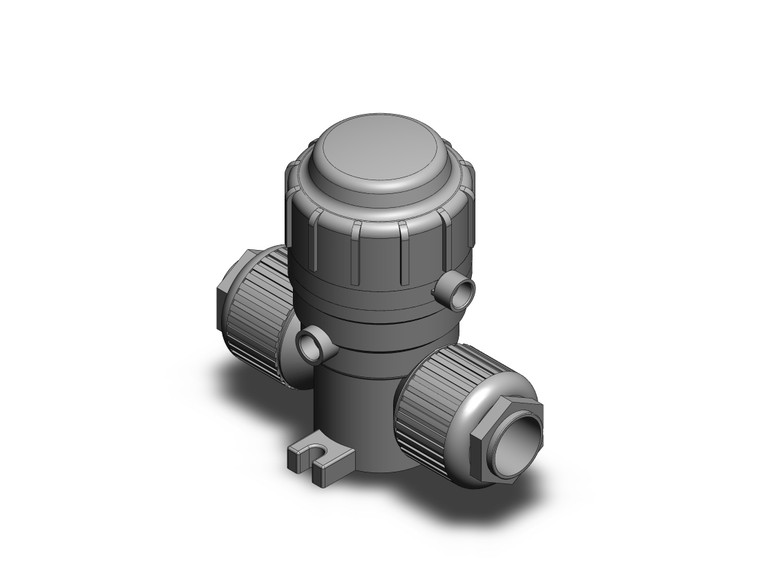

SMC LVQ61-V25N LVQ Series High Purity Chemical Valve Non-Metallic Exterior, Air Operated Insert Bushing, Integral Fitting Type Hyper Fitting
SMC
$460.70
The SMC LVQ61-V25N LVQ Series High Purity Chemical Valve is designed for optimal performance in demanding chemical environments. This valve features a non-metallic exterior, ensuring no metal screws are used in its construction, which enhances its resistance to corrosion and chemical reactions. The all-in-one integrated design simplifies installation and maintenance, making it a reliable choice for various applications.
The body of the valve is crafted from New PFA, a material known for its excellent chemical resistance and durability. The diaphragm is made from PTFE, providing superior sealing capabilities and longevity. The actuator is constructed from PVDF, offering high strength and resistance to a wide range of chemicals.
This air-operated valve includes an insert bushing and an integral fitting type hyper fitting, ensuring secure and efficient connections. Ideal for industries requiring high purity and reliability, the SMC LVQ61-V25N is a top-tier solution for managing chemical flow with precision and safety.
- Body Class:
- Body class 6
- Valve Model:
- N.O.
- Fitting Type:
- LQ1
- Applicable Tubing Size:
- Metric Size:25X22
- Port B (OUT) Different Dia. Size:
- Ports A & B Same Size
- Pilot Port Type:
- Threaded NPT 1/8
- Pilot Port Direction:
- IN Side(Standard)
- Option 1:
- None
- Option 2:
- None
