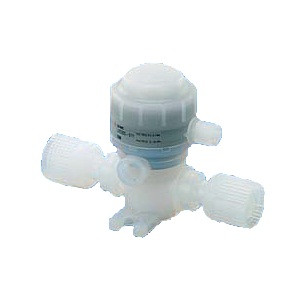

SMC LVQ61S-V25N LVQS Series High Purity Chemical Valve Non-Metallic Exterior, Air Operated Insert Bushing, Integral Fitting Type Space Saving/Space Saving Connection
SMC
$542.90
The SMC LVQ61S-V25N LVQS Series High Purity Chemical Valve is designed for optimal performance in demanding chemical environments. Its non-metallic exterior ensures high purity, making it ideal for applications where contamination must be minimized. The valve features an air-operated insert bushing and an integral fitting type that promotes space-saving connections, perfect for compact installations. The innovative design eliminates the need for metal screws, utilizing an all-in-one integrated structure that enhances durability and reliability. Constructed with a body made from New PFA, a diaphragm crafted from PTFE, and an actuator composed of PVDF, this valve offers exceptional chemical resistance and longevity. Whether used in semiconductor manufacturing, pharmaceuticals, or other high-purity applications, the LVQ61S-V25N delivers superior performance and peace of mind.
- Body Class:
- Body class 6
- Valve Model:
- N.O.
- Body Type:
- Space Saving Connection
- Fitting Type:
- LQ1
- Applicable Tubing Size:
- Fitting size: 6
- Pilot Port Type:
- Threaded NPT 1/8
- Pilot Port Direction:
- IN Side(Standard)
- Option 1:
- None
- Option 2:
- None
