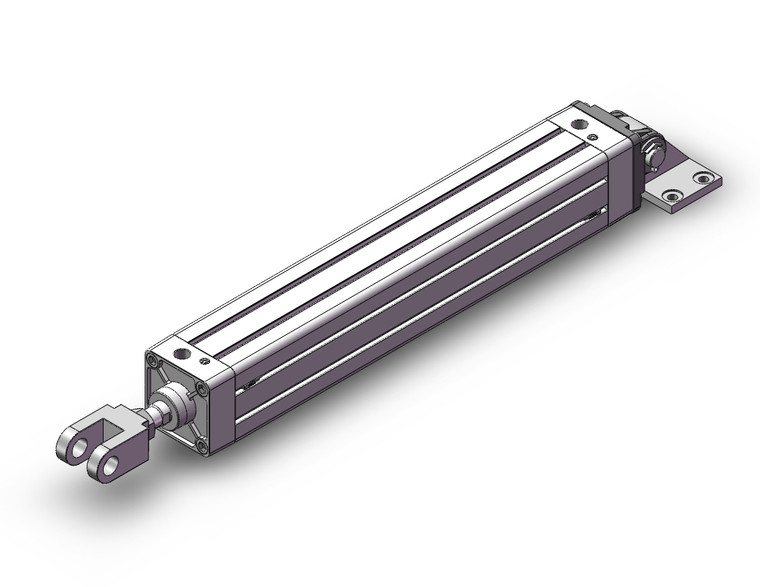

SMC MDB1D80-500Z-NW-M9PWSDPC MB1-Z Series Square Tube Type Air Cylinder
SMC
$555.80
The SMC MDB1D80-500Z-NW-M9PWSDPC MB1-Z Series Square Tube Type Air Cylinder is engineered for efficiency and versatility. This innovative air cylinder is 10% lighter for strokes between 50-100, thanks to the redesigned rod and head covers, making it easier to handle and install. It features the capability to mount small auto switches on four different surfaces, providing flexibility in various applications. Additionally, the optional fastener on the auto switch mounting groove offers enhanced dust prevention, ensuring longevity and reliability. The inclusion of an auto switch (compatible with Series MDB1: MDB1, MDB1W, MDB1K) further enhances its functionality, making it an ideal choice for those seeking a robust and adaptable air cylinder solution.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Double Clevis
- Bore Size:
- Bore Size 80 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 500 mm
- Suffix For Cylinder:
- None Rod Boot,Air Cushion
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- None Rod Boot,Air Cushion
- Accessories1:
- Pivot Bracket
- Accessories2:
- Double Knuckle Joint
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
