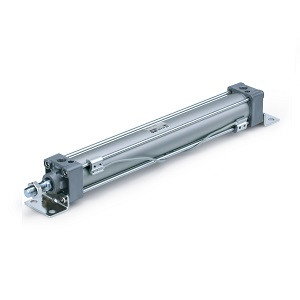

SMC MDBB100TN-100JZ-M9NZ MB-Z Series Air Cylinder
SMC
$412.75
The SMC MDBB100TN-100JZ-M9NZ MB-Z Series Air Cylinder is engineered for efficiency and performance. This advanced air cylinder features a redesigned rod cover and head cover, resulting in a weight reduction of up to 10%, making it easier to handle and install. It offers the convenience of part numbers that include rod end brackets and/or pivot brackets, eliminating the need for separate bracket orders. Additionally, the cylinder is equipped with an auto switch, compatible with Series MDB-Z models such as MDB, MDBW, MDBK, MDBKW, MDBB, and MDB Q, ensuring seamless integration into your pneumatic systems. Ideal for applications requiring reliable and lightweight air cylinders, the SMC MDBB100TN-100JZ-M9NZ is a versatile choice for enhancing operational efficiency.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Basic/Without Bracket
- Bore Size:
- Bore Size 100 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 100 mm
- Suffix For Cylinder:
- Rod Boot:Nylon Tarpaulin,Air Cushion
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- None Rod Boot,Air Cushion
- Accessories1:
- No Bracket
- Accessories2:
- No Bracket
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
