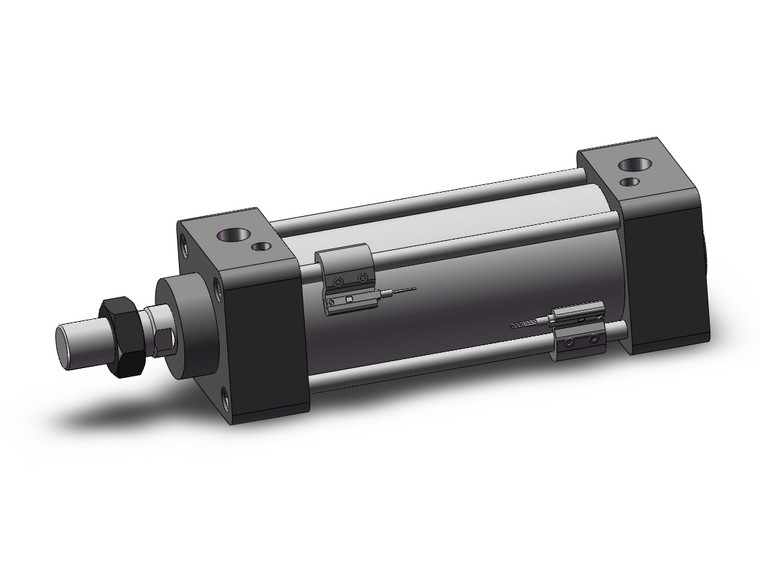

SMC MDBB50-100Z-M9PSAPC MB-Z Series Air Cylinder
SMC
$288.35
The SMC MDBB50-100Z-M9PSAPC MB-Z Series Air Cylinder is engineered for efficiency and performance. This advanced air cylinder features a redesigned rod cover and head cover, resulting in a weight reduction of up to 10%, making it easier to handle and install. The product is versatile, with part numbers available that include rod end brackets and/or pivot brackets, eliminating the need to order these components separately. Additionally, it comes equipped with an auto switch, compatible with the MDB-Z series, including MDB, MDBW, MDBK, MDBKW, MDBB, and MDB Q models. Ideal for applications requiring reliable and lightweight pneumatic solutions.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Basic/Without Bracket
- Bore Size:
- Bore Size 50 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 100 mm
- Suffix For Cylinder:
- None Rod Boot,Air Cushion
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- None Rod Boot,Air Cushion
- Accessories1:
- No Bracket
- Accessories2:
- No Bracket
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
