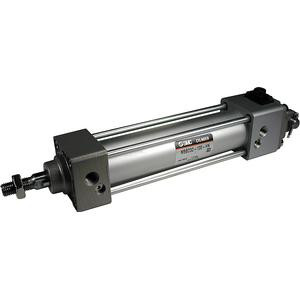

SMC MDBBF32-350-HN-P3DWASE MBB Series Air Cylinder
SKU:
MDBBF32-350-HN-P3DWASE
UPC:
MPN:
MDBBF32-350-HN-P3DWASE
Condition:
New
With Auto Switch(Built-in Magnet):
With Auto Switch
Mounting Style:
Rod Side Flange Style
Bore Size:
Bore Size 32 mm
Port Thread Type:
Rc
Cylinder Stroke:
Standard Stroke 350 mm
Suffix For Cylinder:
Without Rod Boot
Lock Position:
Head End Lock
Manual Release Type:
Non-locking Type
Dual Stroke Mark:
Without Two Stroke Mark
Cylinder Stroke 2:
Without Cylinder Stroke 2
Suffix For Cylinder2:
Without Rod Boot
Lock Position2:
None
Manual Release Type2:
None
Auto Switch:
Magnetic Field Resistant 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 2-wire, In-line, Lead Wire :0.3m, Apply Voltage :DC24V
MBB Series Air CylinderReduced weight by changing the shape of the rod cover and head;?cover. Max. 10% lighter;Part numbers with rod end bracket and/or pivot bracket available (Not;?necessary to...
