SMC MDSUA3-180S-S99SAPC MSUA Series Rotary Table
SMC
$329.15

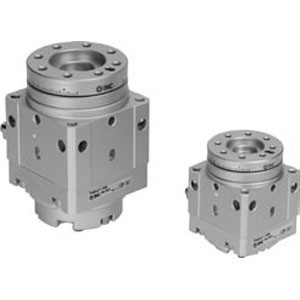

The SMC MDSUA3-180S-S99SAPC MSUA Series Rotary Table is a versatile and precise solution for your rotational needs. This innovative product combines a table and rotary actuator, offering seamless integration for various applications. With an adjustable angle of ±5º at each rotation end (or ±2.5º for double rotation), it provides flexibility and precision in movement. The table deflection accuracy is maintained at an impressive 0.03 mm or less, ensuring reliable performance.
You can choose between side ported and axial ported connection positions, with the side ported option available when a switch is installed. Additionally, the auto switch mounting position can be adjusted to suit your specific requirements. This rotary table is part of the MDSU series, including models MDSUA and MDSUB, and comes equipped with an auto switch for enhanced functionality. Whether for industrial automation or precision engineering, the MSUA Series Rotary Table is designed to meet your exacting standards.
- With Auto Switch(Built-in Magnet):
- With Auto Switch(Built-in Magnet)
- Nominal Size:
- MSUA 3
- Rotation Angle:
- 180°
- Connecting Port:
- Side Ported
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
