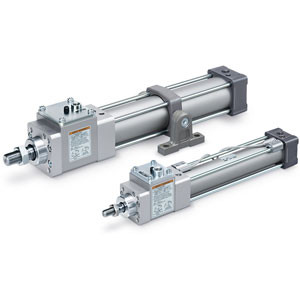

SMC MDWBB80-350-P4DWSC-X3000 MWB Series Cylinder With Lock Double Acting,Single Rod

SMC MDWBB80-350-P4DWSC-X3000 MWB Series Cylinder With Lock Double Acting,Single Rod

SMC
SKU:
MDWBB80-350-P4DWSC-X3000
Availability:
Factory Stock
$621.76
Condition:
New
Current Stock:
Description

MWB Series Cylinder With Lock Double Acting,Single Rod

  • A lock unit has been added. [New];
  • A model with a coil scraper and a model with a stainless steel rod have been added. (Made to order) [New];
  • Lock can be manually operated with a hexagon wrench.; Easily mounted onto equipment;
  • Separate construction for improved ease of maintenance;
  • Holding force improved by 15%;
  • High stopping accuracy within ±1 mm;
  • Overall length reduced by 13 mm max.
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Basic
    Bore Size:
    Bore Size 80 mm
    Thread Type:
    Rc
    Cylinder Stroke:
    Standard Stroke 350 mm
    Suffix:
    Without Rod Boot,Air Cushion
    Pivot Bracket:
    No Bracket
    Rod End Bracket:
    No Bracket
    Auto Switch:
    Magnetic Field Resistant 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 2-wire, In-line, Lead Wire :0.3m, Apply Voltage :DC24V(DC20~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Dimensionally Compatible With The Mnb Series
