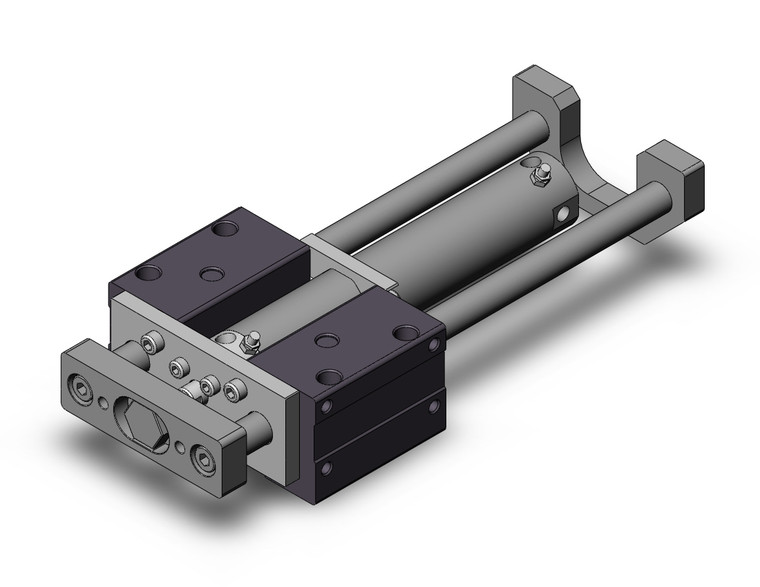

SMC MGCLB32TN-150-R MGC Series Guide Cylinder Compact Type
SMC
$387.45
SMC MGCLB32TN-150-R - MGC Series Compact Guide Cylinder, Ball Bushing, 32mm Bore, 150mm Stroke, Rubber Bumper, Trunnion (TN) Mount
The SMC MGCLB32TN-150-R combines compact design with accurate guided motion with a 32mm bore and 150mm stroke. Part of the MGC Series compact external guided cylinder lineup, this actuator features ball bushing bearings and trunnion (tn) mounting for reliable pneumatic performance.
Key Features & Specifications
- Rubber bumper (-R) - additional end-of-stroke cushioning for impact-sensitive applications
- Ball bushing (L-type) bearings - reliable, low-friction linear guidance for demanding duty cycles
- External guide rods - provide load-bearing isolation that protects internal seals from side impacts
- Air cushions standard - absorb impact energy at stroke end for quieter, longer-lasting operation
- Non-rotating accuracy: ±0.05° (32mm bore)
- Bore Size: 32mm | Stroke: 150mm | Trunnion (TN) Mount | Rubber Bumper
Typical Applications
Designed for high-cycle manufacturing, clamping, and indexing applications requiring precise, non-rotating guided linear motion in a compact package.
Manufactured by SMC Corporation.
- Type:
- None
- Bearing Type:
- Ball Bushing Bearing
- Mounting Style:
- Basic Style
- Bore Size:
- Bore Size 32 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 150 mm
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Rear Plate:
- With rear plate
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
