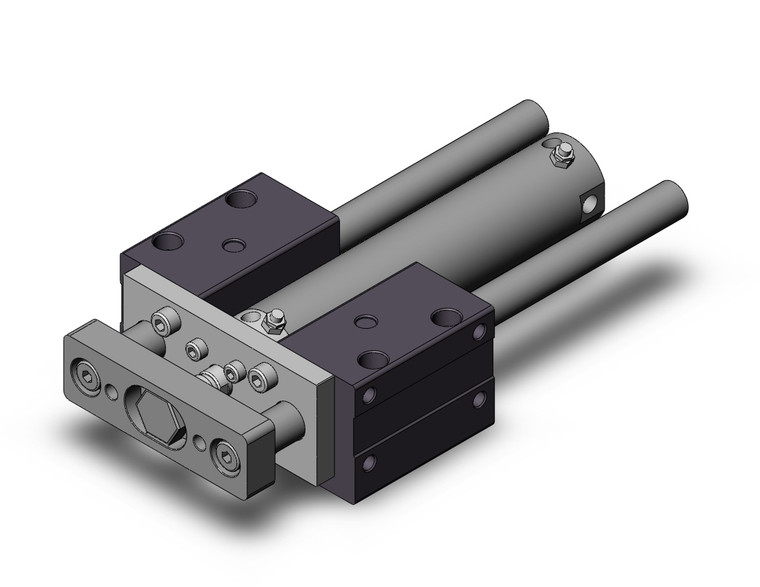

SMC MGCLB40TN-150 MGC Series Guide Cylinder Compact Type
SMC
$468.15
SMC MGCLB40TN-150 - MGC Series Compact Guide Cylinder, Ball Bushing, 40mm Bore, 150mm Stroke, Trunnion (TN) Mount
The SMC MGCLB40TN-150 offers compact guided pneumatic actuation with a 40mm bore and 150mm stroke. Part of the MGC Series compact external guided cylinder lineup, this actuator features ball bushing bearings and trunnion (TN) mounting for reliable pneumatic performance.
Key Features & Specifications
- Ball bushing (L-type) bearings - high-precision guidance ensuring smooth operation and stable travel resistance
- External guide rods - isolate load bearing from piston rod and seals for extended service life
- Air cushions standard - absorb kinetic energy at end of stroke to reduce impact and vibration
- Non-rotating accuracy: ±0.05° (40mm bore)
- Bore Size: 40mm | Stroke: 150mm | Trunnion (TN)
Typical Applications
Designed for production line transfer, part positioning, and inspection tasks requiring precise, non-rotating guided linear motion in a compact package.
Manufactured by SMC Corporation.
- Type:
- None
- Bearing Type:
- Ball Bushing Bearing
- Mounting Style:
- Basic Style
- Bore Size:
- Bore Size 40 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 150 mm
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Rear Plate:
- Without rear plate
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
