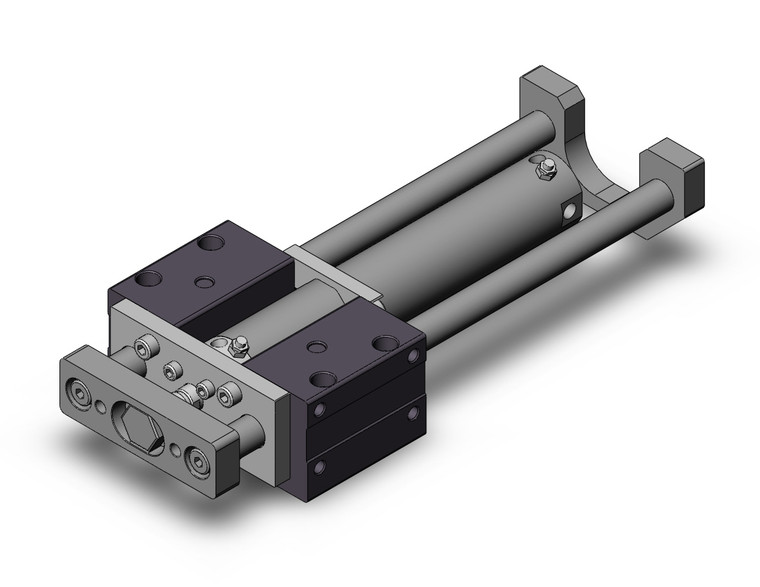

SMC MGCLB40TN-200-R MGC Series Guide Cylinder Compact Type
SMC
$520.45
SMC MGCLB40TN-200-R - MGC Series Compact Guide Cylinder, Ball Bushing, 40mm Bore, 200mm Stroke, Rubber Bumper, Trunnion (TN) Mount
The SMC MGCLB40TN-200-R combines compact design with accurate guided motion with a 40mm bore and 200mm stroke. Part of the MGC Series compact external guided cylinder lineup, this actuator features ball bushing bearings and trunnion (TN) mounting for reliable pneumatic performance.
Key Features & Specifications
- Rubber bumper (-R) - cushioned end-of-stroke contact minimizes impact and wear
- Ball bushing (L-type) bearings - high-precision guidance ensuring smooth operation and stable travel resistance
- External guide rods - isolate load bearing from piston rod and seals for extended service life
- Air cushions standard - absorb kinetic energy at end of stroke to reduce impact and vibration
- Non-rotating accuracy: ±0.05° (40mm bore)
- Bore Size: 40mm | Stroke: 200mm | Trunnion (TN) | Rubber Bumper
Typical Applications
Designed for high-cycle manufacturing, clamping, and indexing applications requiring precise, non-rotating guided linear motion in a compact package.
Manufactured by SMC Corporation.
- Type:
- None
- Bearing Type:
- Ball Bushing Bearing
- Mounting Style:
- Basic Style
- Bore Size:
- Bore Size 40 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 200 mm
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Rear Plate:
- With rear plate
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
