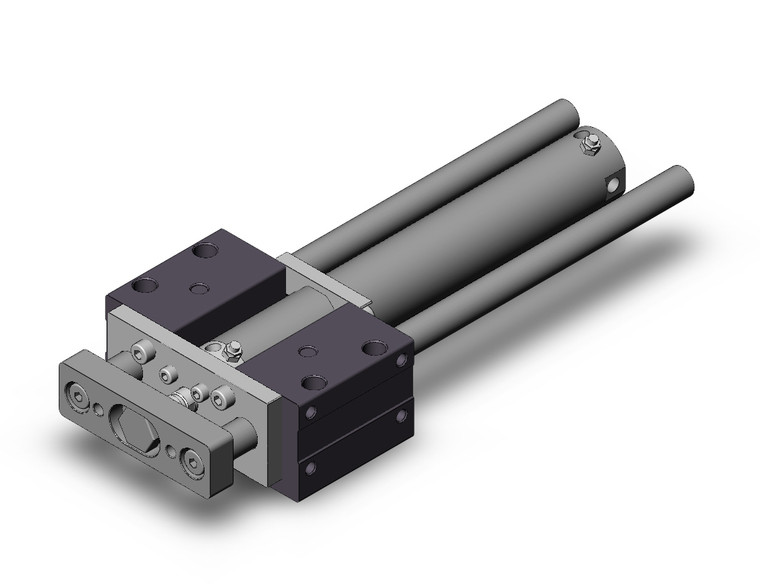

SMC MGCLB40TN-250 MGC Series Guide Cylinder Compact Type
SMC
$492.55
SMC MGCLB40TN-250 - MGC Series Compact Guide Cylinder, Ball Bushing, 40mm Bore, 250mm Stroke, Trunnion (TN) Mount
The SMC MGCLB40TN-250 ensures stable, repeatable guided linear motion with a 40mm bore and 250mm stroke. Part of the MGC Series compact external guided cylinder lineup, this actuator features ball bushing bearings and trunnion (tn) mounting for reliable pneumatic performance.
Key Features & Specifications
- Ball bushing (L-type) bearings - reliable, low-friction linear guidance for demanding duty cycles
- External guide rods - provide load-bearing isolation that protects internal seals from side impacts
- Air cushions standard - absorb impact energy at stroke end for quieter, longer-lasting operation
- Non-rotating accuracy: ±0.05° (40mm bore)
- Bore Size: 40mm | Stroke: 250mm | Trunnion (TN) Mount
Typical Applications
Designed for industrial material handling, lifting, and guided positioning requiring precise, non-rotating guided linear motion in a compact package.
Manufactured by SMC Corporation.
- Type:
- None
- Bearing Type:
- Ball Bushing Bearing
- Mounting Style:
- Basic Style
- Bore Size:
- Bore Size 40 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 250 mm
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Rear Plate:
- Without rear plate
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
