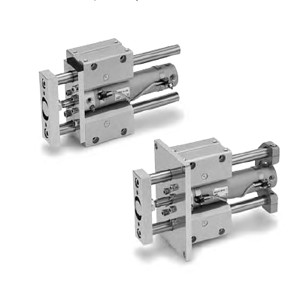

SMC MGCLB50-600 MGC Series Guide Cylinder Compact Type
SMC
$741.20

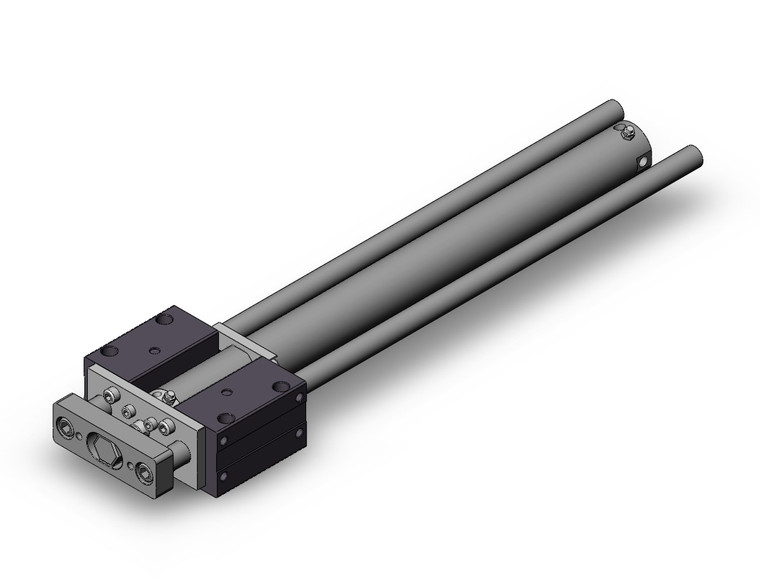

SMC MGCLB50-600 - MGC Series Compact Guide Cylinder, Ball Bushing, 50mm Bore, 600mm Stroke
The SMC MGCLB50-600 provides robust guided pneumatic motion with a 50mm bore and 600mm stroke. Part of the MGC Series compact external guided cylinder lineup, this actuator features ball bushing bearings and rear plate (b) mounting for reliable pneumatic performance.
Key Features & Specifications
- Ball bushing (L-type) bearings - precision linear guidance with consistent, low-friction travel
- External guide rods - protect actuator seals from lateral loads, extending operational lifespan
- Air cushions standard - provide maximum kinetic energy absorption at stroke end for machine protection
- Non-rotating accuracy: ±0.04° (50mm bore)
- Bore Size: 50mm | Stroke: 600mm | Rear Plate (B) Mount
Typical Applications
Designed for high-speed sorting, inspection, and light assembly automation requiring precise, non-rotating guided linear motion in a compact package.
Manufactured by SMC Corporation.
- Type:
- None
- Bearing Type:
- Ball Bushing Bearing
- Mounting Style:
- Basic Style
- Bore Size:
- Bore Size 50 mm
- Port Thread Type:
- M5X0.8,Rc
- Cylinder Stroke:
- Standard Stroke 600 mm
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Rear Plate:
- Without rear plate
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
