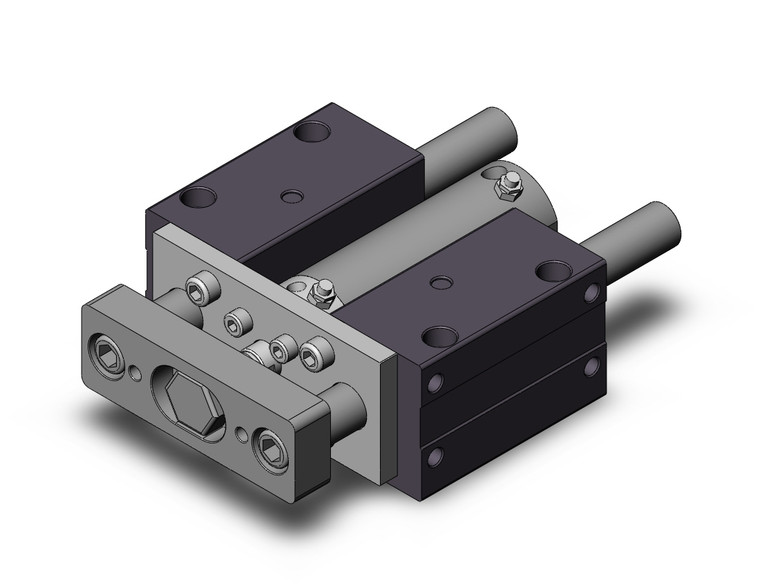

SMC MGCLB50-75 MGC Series Guide Cylinder Compact Type
SMC
$575.30
SMC MGCLB50-75 - MGC Series Compact Guide Cylinder, Ball Bushing, 50mm Bore, 75mm Stroke
The SMC MGCLB50-75 combines reliability with compact guided precision with a 50mm bore and 75mm stroke. Part of the MGC Series compact external guided cylinder lineup, this actuator features ball bushing bearings and rear plate (b) mounting for reliable pneumatic performance.
Key Features & Specifications
- Ball bushing (L-type) bearings - smooth, repeatable guided motion with minimal stick-slip
- External guide rods - separate side loading from the piston rod for longer seal and rod life
- Air cushions standard - deliver end-of-stroke energy absorption to minimize shock and extend component life
- Non-rotating accuracy: ±0.04° (50mm bore)
- Bore Size: 50mm | Stroke: 75mm | Rear Plate (B) Mount
Typical Applications
Designed for precision clamping, guided pressing, and transfer conveyors requiring precise, non-rotating guided linear motion in a compact package.
Manufactured by SMC Corporation.
- Type:
- None
- Bearing Type:
- Ball Bushing Bearing
- Mounting Style:
- Basic Style
- Bore Size:
- Bore Size 50 mm
- Port Thread Type:
- M5X0.8,Rc
- Cylinder Stroke:
- Standard Stroke 75 mm
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Rear Plate:
- Without rear plate
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
