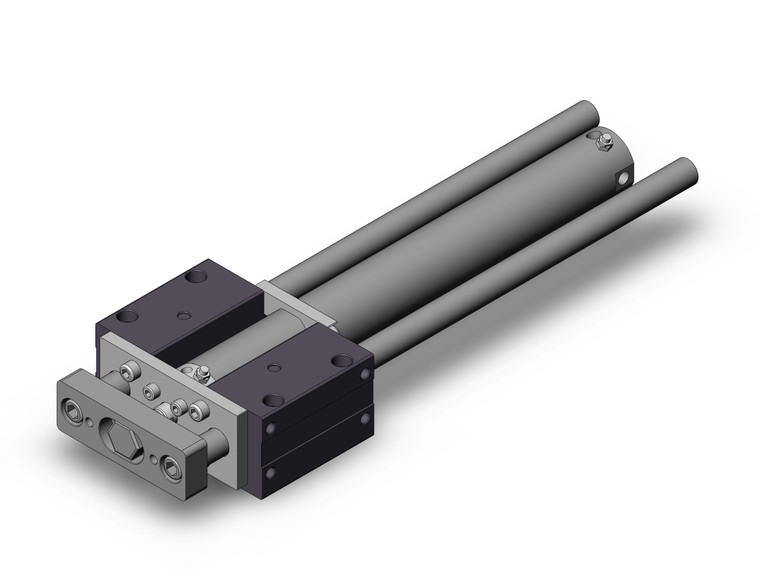

SMC MGCLB50TN-400 MGC Series Guide Cylinder Compact Type
SMC
$678.00
SMC MGCLB50TN-400 - MGC Series Compact Guide Cylinder, Ball Bushing, 50mm Bore, 400mm Stroke, Trunnion (TN) Mount
The SMC MGCLB50TN-400 ensures stable, repeatable guided linear motion with a 50mm bore and 400mm stroke. Part of the MGC Series compact external guided cylinder lineup, this actuator features ball bushing bearings and trunnion (TN) mounting for reliable pneumatic performance.
Key Features & Specifications
- Ball bushing (L-type) bearings - high-precision guidance ensuring smooth operation and stable travel resistance
- External guide rods - isolate load bearing from piston rod and seals for extended service life
- Air cushions standard - absorb kinetic energy at end of stroke to reduce impact and vibration
- Non-rotating accuracy: ±0.04° (50mm bore)
- Bore Size: 50mm | Stroke: 400mm | Trunnion (TN)
Typical Applications
Designed for precision pressing, lifting, and conveyor transfer systems requiring precise, non-rotating guided linear motion in a compact package.
Manufactured by SMC Corporation.
- Type:
- None
- Bearing Type:
- Ball Bushing Bearing
- Mounting Style:
- Basic Style
- Bore Size:
- Bore Size 50 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 400 mm
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Rear Plate:
- Without rear plate
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
