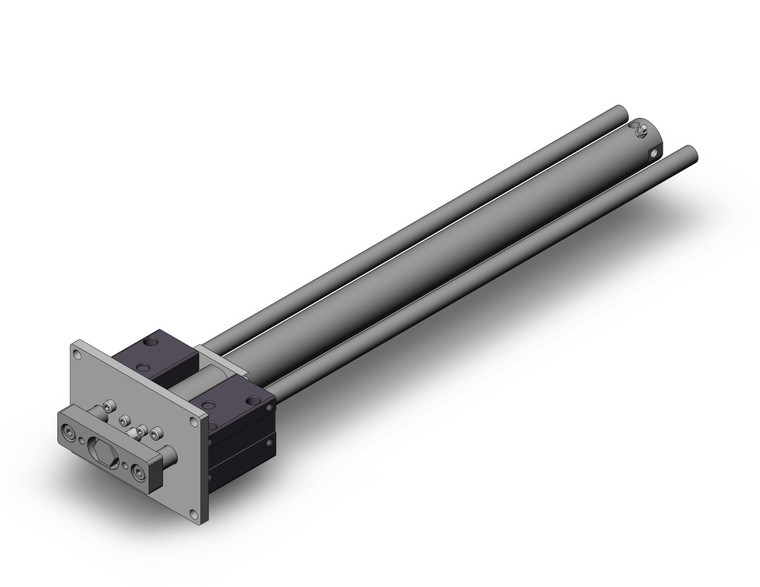

SMC MGCLF32-500 MGC Series Guide Cylinder Compact Type
SMC
$450.80
SMC MGCLF32-500 - MGC Series Compact Guide Cylinder, Ball Bushing, 32mm Bore, 500mm Stroke, Flange (F) Mount
The SMC MGCLF32-500 provides precision-guided linear motion with a 32mm bore and 500mm stroke. Part of the MGC Series compact external guided cylinder lineup, this actuator features ball bushing bearings and flange (f) mounting for reliable pneumatic performance.
Key Features & Specifications
- Ball bushing (L-type) bearings - precision linear guidance with consistent, low-friction travel
- External guide rods - protect actuator seals from lateral loads, extending operational lifespan
- Air cushions standard - provide maximum kinetic energy absorption at stroke end for machine protection
- Non-rotating accuracy: ±0.05° (32mm bore)
- Bore Size: 32mm | Stroke: 500mm | Flange (F) Mount
Typical Applications
Designed for pick-and-place, pressing, and guided transfer operations requiring precise, non-rotating guided linear motion in a compact package.
Manufactured by SMC Corporation.
- Type:
- None
- Bearing Type:
- Ball Bushing Bearing
- Mounting Style:
- Flange Style
- Bore Size:
- Bore Size 32 mm
- Port Thread Type:
- M5X0.8,Rc
- Cylinder Stroke:
- Standard Stroke 500 mm
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Rear Plate:
- Without rear plate
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
