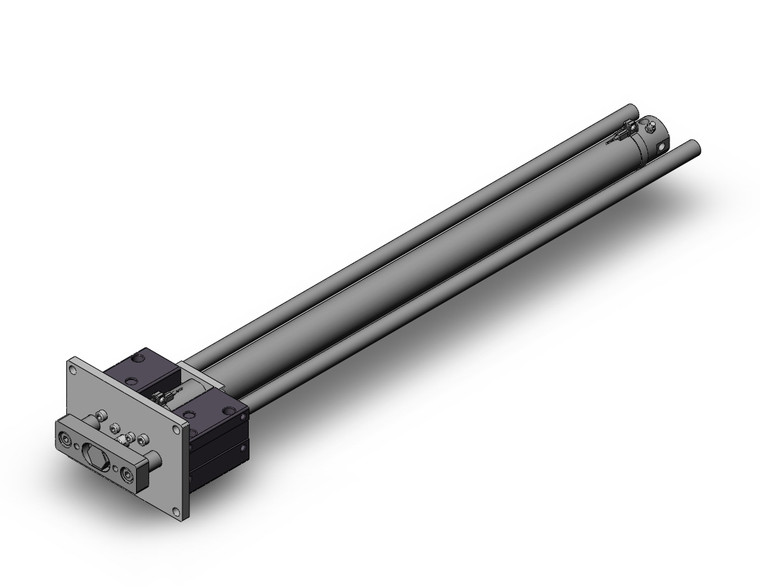

SMC MGCLF32TN-600-M9PZ MGC Series Guide Cylinder Compact Type
SMC
$561.90
SMC MGCLF32TN-600-M9PZ - MGC Series Compact Guide Cylinder, Ball Bushing, 32mm Bore, 600mm Stroke, Trunnion (TN) Mount, Auto Switch (M9PZ)
The SMC MGCLF32TN-600-M9PZ provides dependable non-rotating linear motion with a 32mm bore and 600mm stroke. Part of the MGC Series compact external guided cylinder lineup, this actuator features ball bushing bearings and trunnion (tn) mounting for reliable pneumatic performance.
Key Features & Specifications
- Ball bushing (L-type) bearings - precision linear guidance with consistent, low-friction travel
- External guide rods - protect actuator seals from lateral loads, extending operational lifespan
- Air cushions standard - provide maximum kinetic energy absorption at stroke end for machine protection
- Auto switch (M9PZ) - integrated position detection sensor for automated control feedback
- Non-rotating accuracy: ±0.05° (32mm bore)
- Bore Size: 32mm | Stroke: 600mm | Trunnion (TN) Mount | M9PZ
Typical Applications
Designed for automated inspection, part ejection, and packaging lines requiring precise, non-rotating guided linear motion in a compact package.
Manufactured by SMC Corporation.
- Type:
- None
- Bearing Type:
- Ball Bushing Bearing
- Mounting Style:
- Flange Style
- Bore Size:
- Bore Size 32 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 600 mm
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Rear Plate:
- Without rear plate
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
