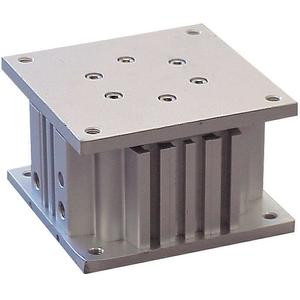

MGF, Low Profile Guide Table
The MGF low profile guide table integrates a compact cylinder to a large diameter concentric guide sleeve to handle loads applied from any direction providing equal eccentric load resistance through 360 . Using the guide sleeve instead of guide rods reduces the unit s weight by 15% and eliminates eccentric load capacity variances caused by load orientation. An internal non-rotating pin has been added to prevent rotation of the top plate.
-
- Bore sizes: 40, 63, 100 mm- Stroke lengths: 30, 50, 75, 100
- Non-rotating accuracy +/-0.08 for 40 mm bore
- Non-rotating accuracy +/-0.06 for 63 mm bore
- Non-rotating accuracy +/-0.05 for 100 mm bore
- Auto switch capable
-
