Description

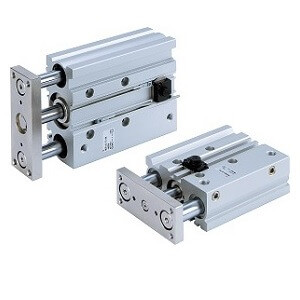

MGPL-H/R, Standard Guided Cylinder with End Lock, Ball Bushing Bearing
The MGPL-H/R is a compact body, end lock actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator s rod and seals. The end lock can be specified for either the head end (H) or rod end (R) of the stroke. The brake spring, end lock mechanism will engage when air pressure is lost for drop prevention applications and can be released by reintroducing air pressure or via a manual release bolt. The (L) high precision ball bushing allows for smooth operation that ensures stable travel resistance, suitable for pushing and lifting applications.
-
- Bore sizes: 20, 25, 32, 40, 50, 63, 80, 100 mm- Non-rotating accuracy ranges from +/-0.05 (100 mm bore) to +/- 0.09 (20 mm bore)
- Rubber bumpers as standard
- Auto switch capable
-
