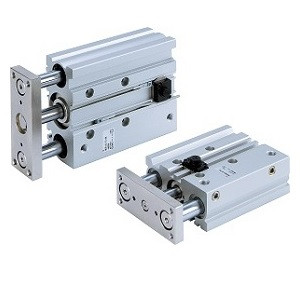

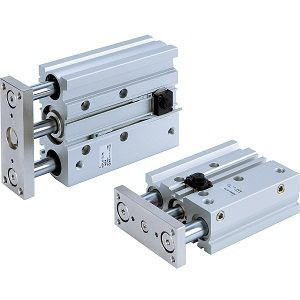

SMC MGPL40N-150-RL-M9PWVMBPC MGP Series Compact Guide Cylinder With End Lock
SMC
$660.90
The SMC MGPL40N-150-RL-M9PWVMBPC MGP Series Compact Guide Cylinder With End Lock is engineered for efficiency and space-saving performance. This innovative cylinder features a weight reduction of up to 24% thanks to its shorter guide rod and thinner plate design. The space required between the bottom of the cylinder body and your equipment is minimized, with the guide rod shortened by a maximum of 22 mm. Additionally, the cylinder is compatible with round type and magnetic field resistant auto switches, which can be mounted directly without the need for a spacer, enhancing its versatility and ease of installation. Ideal for applications where space and weight are critical factors, this compact guide cylinder offers reliable performance and adaptability.
- Bearing Type:
- Ball Bushing Bearing
- Bore Size:
- Bore Size 40 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 150 mm
- Lock Position:
- Rod End Lock
- Manual Release Type:
- Locking Type
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M8-4 pin, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
