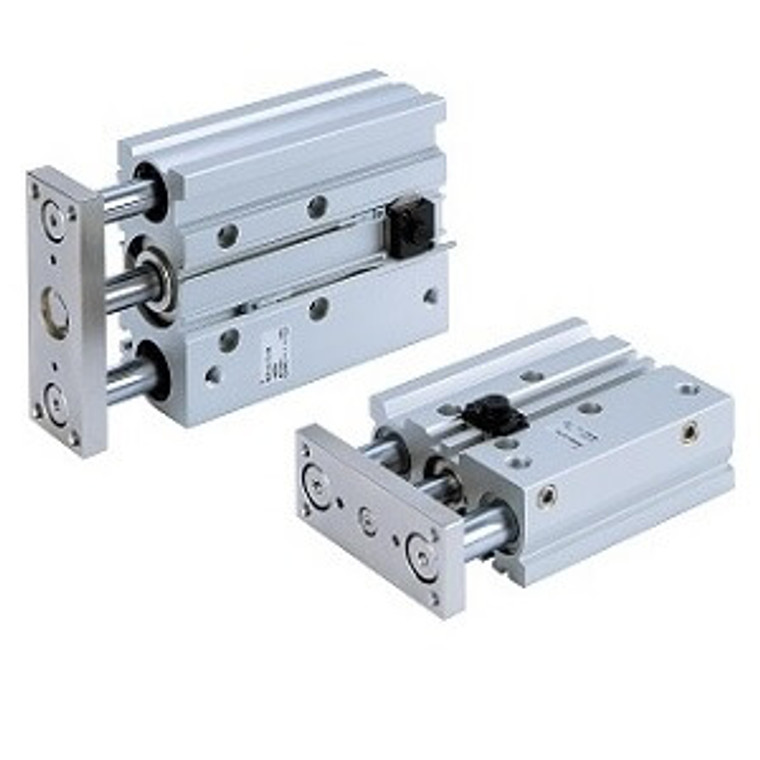

SMC MGPM20-50-HN-M9BWSDPC MGP Series Compact Guide Cylinder With End Lock
SMC
$318.00
The SMC MGPM20-50-HN-M9BWSDPC MGP Series Compact Guide Cylinder With End Lock is engineered for efficiency and precision. This innovative cylinder features a weight reduction of up to 24% thanks to its shorter guide rod and thinner plate design, making it an ideal choice for applications where space and weight are critical factors. The space required between the bottom of the cylinder body and your equipment is minimized, as the guide rod is shortened by a maximum of 22 mm. Additionally, the cylinder is compatible with round type and magnetic field resistant auto switches, which can be mounted directly without the need for a spacer, enhancing its versatility and ease of use. Perfect for a wide range of industrial applications, this compact guide cylinder offers reliable performance and streamlined installation.
- Bearing Type:
- Slide Bearing
- Bore Size:
- Bore Size 20 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 50 mm
- Lock Position:
- Head End Lock
- Manual Release Type:
- Non-locking Type
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
