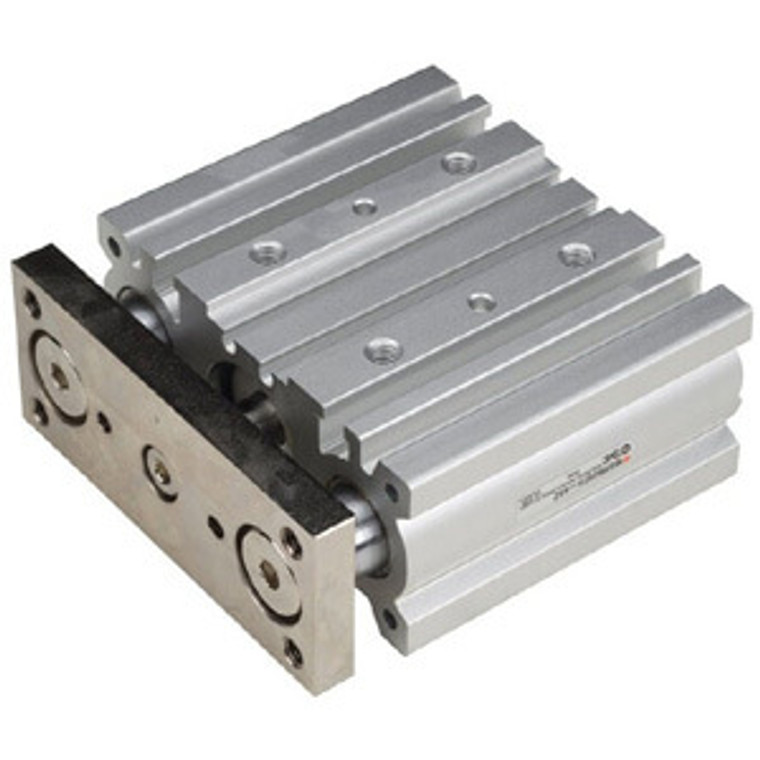

SMC MGPM25TN-50Z-A93 Guided Cylinder
- SKU:
- MGPM25TN-50Z-A93
- Condition:
- New
- Bore Size:
- 25mm
- Port Thread:
- TN (NPT)
- Stroke:
- 50mm
- Auto Switch:
- A93--Reed, DC Volt, AC Volt, LED, Horizontal
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
Description
MGPM-Z, Standard Guided Cylinder, Slide Bearing
The MGPM is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator s rod and seals. The carbon steel alloy slide bearing provides lateral stability protecting it from side load impacts, suitable for stopping applications.
-
- Bore sizes: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm- Non-rotating accuracy: +/-0.08 (12 16 mm bore)
- Non-rotating accuracy: +/-0.07 (20 25 mm bore)
- Non-rotating accuracy: +/-0.06 (32 40 mm bore)
- Non-rotating accuracy: +/-0.05 (50 63 mm bore)
- Non-rotating accuracy: +/-0.04 (80 100 mm bore)
- Rubber bumpers as standard
- Auto switch capable
-
