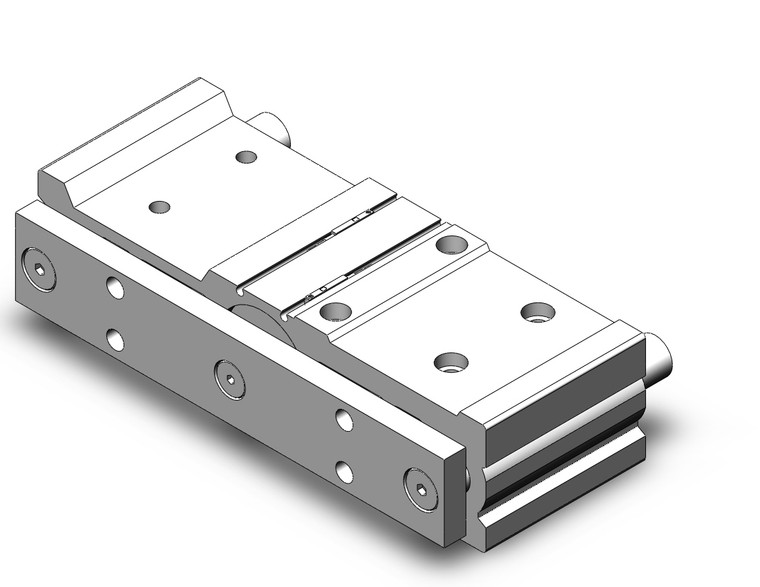

SMC MGPWM50-50-M9PMAPC MGPW Series Compact Guide Cylinder/Wide Type
SMC
$476.15
The SMC MGPWM50-50-M9PMAPC is a part of the MGPW Series Compact Guide Cylinder/Wide Type, designed to enhance performance and reliability in various industrial applications. This advanced guide cylinder features a doubled guide pitch, significantly improving the allowable rotational torque of the plate. As a result, the non-rotating accuracy of the plate is enhanced, ensuring precise and consistent operation. Despite these improvements, the cylinder maintains an equivalent weight to the basic type, offering a perfect balance of strength and efficiency. Ideal for applications requiring high precision and durability, the MGPWM50-50-M9PMAPC is a robust solution for your pneumatic needs.
- Bearing Type:
- Slide Bearing
- Bore Size:
- Bore Size 50 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 50 mm
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
