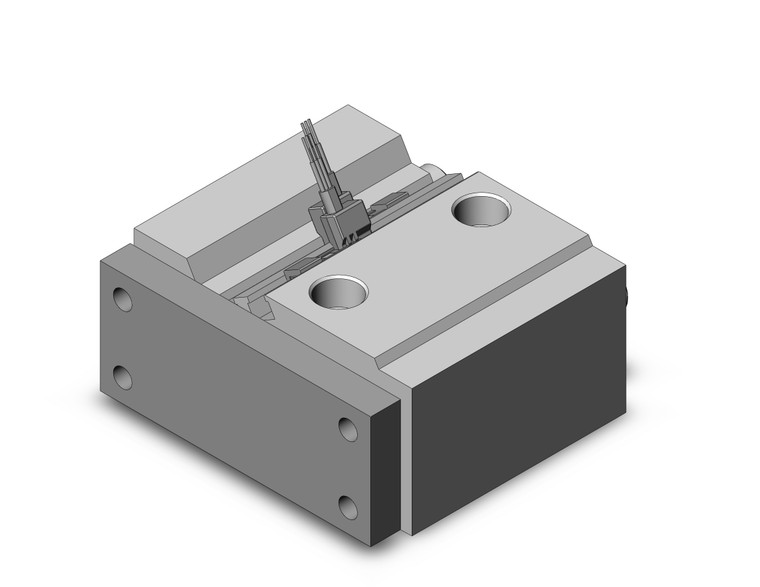

SMC MGQL20TN-20-M9PWVSAPC MGQ Series Compact Guide Cylinder
SMC
$323.60
The SMC MGQL20TN-20-M9PWVSAPC MGQ Series Compact Guide Cylinder is engineered for precision and durability. This air cylinder features an integrated guide that provides exceptional lateral load resistance and high non-rotating accuracy, making it an ideal choice for applications requiring precise motion control. Perfectly suited for use as a stopper or lifter in conveyor lines, this compact guide cylinder ensures reliable performance in demanding industrial environments. Its robust construction and advanced design make it a valuable addition to any automation system, enhancing efficiency and productivity.
- Bearing Type:
- Ball Bushing Bearing
- Bore Size:
- Bore Size 20 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 20 mm
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
