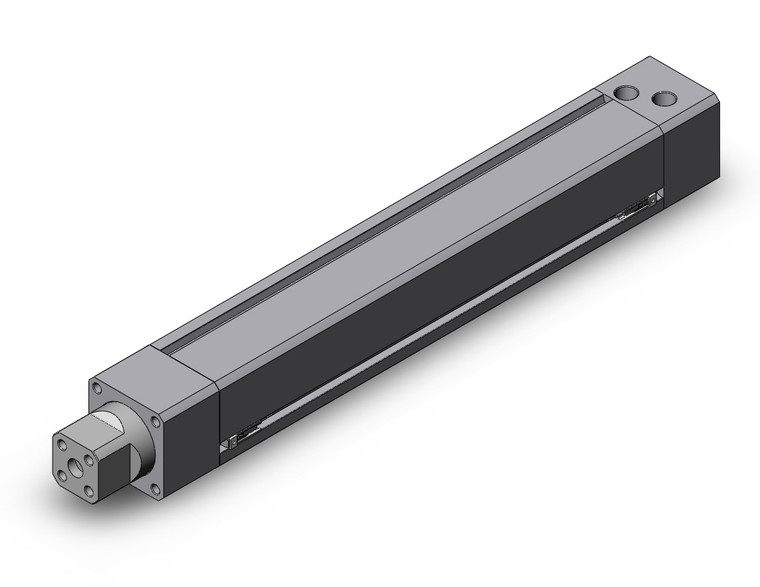

SMC MGZ40TN-300-A93L3 Guided Cylinder

SMC MGZ40TN-300-A93L3 MGZ Series Non-rotating Double Power Cylinder

SMC
SKU:
MGZ40TN-300-A93L3
Availability:
Factory stock
$514.30
Condition:
New
Current Stock:
Description

MGZ Series Non-rotating Double Power Cylinder

  • Doubles the output in the extending direction with a unique structure.;?A built-in non-rotating mechanism using slide keys allows loads to be mounted directly.
    • Additional Information
    Mounting Style:
    Basic Style
    Bore Size:
    Bore Size 40 mm
    Port Thread Type:
    NPT
    Coil Scraper:
    Without no Coil scraper
    Cylinder Stroke:
    Standard Stroke 300 mm
    Auto Switch:
    Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V,AC100V
    Number Of Auto Switches:
    3 Pcs.
    Made To Order:
    Standard
